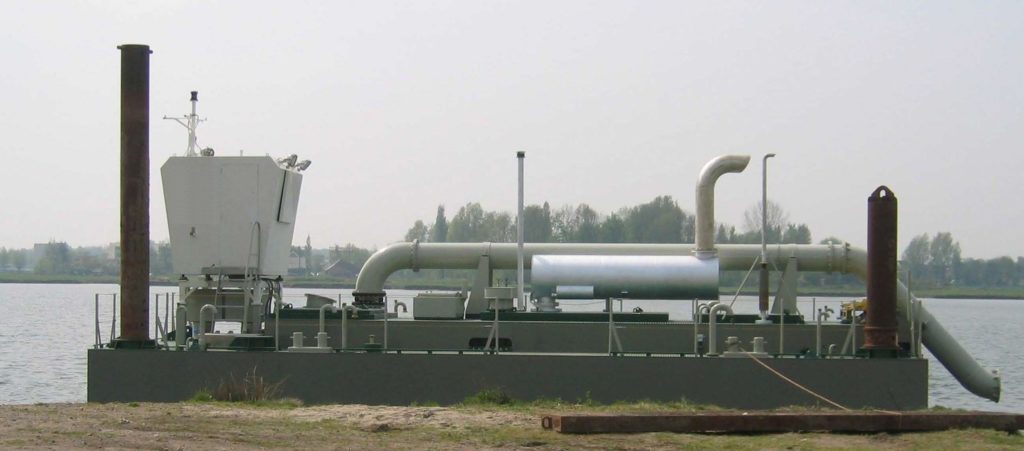

1.100 kW Dredge Booster Unit (3 sisters)
Demountable, Remotely controlled, dredge booster unit for floating and on-land application. 1.100 kW, diameter (mm): 500/600
| GENERAL | |
| Built | 2002 |
| Yard | DGN Netherlands |
| Area of operation | Inland & on land |
| DIMENSIONS | |
| Length | 15,00 m |
| Width | 5,85 m |
| Depth | 2,50 m |
| Draft | 1,25 m |
| Airdraft | 5,00 m |
| VOLUMES / WEIGHTS | |
| Total Weight | 97 ton |
| Fuel | (2 x 7,5) 15 m3 |
| Ballast | 20 m3 |
| Pump | |
| Inlet | 600/500 mm |
| Delivery | 600/500 mm |
| Max. pressure | 16 bar |
| Machinery | |
| Generator | Iveco / 100 kW |
| Pump drive | Caterpillar, 3512B / 1.100 kW |
| Fuel | Marine diesel oil |
| Total power | 1.200 kW |
| Other | |
| Spuds | 2 pc x 15,00 m, dia 500 mm |
| Dismountable | Yes |
| Road transportable | Yes |
| Remote control | Yes |
Contact us for more details
