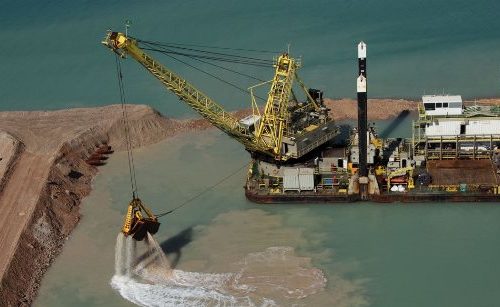

Grab dredger / Transhipment crane barge
Unique recent built (2015) grab dredger suitable for dredging the softer, less compacted soils at relatively short cycle times and lower fuel consumption per m³. This unit can also be utilised for transshipment and loading/discharging of dry bulk cargoes at a low(er) cost per ton. besides that, this unit can also be utilised in a lift crane mode. Location: SE Asia. Enquire
| General | |
| Built | 2015 |
| Class | BV, I ✠ Hull, Pontoon- |
| Special service Grab-Dredger, | |
| Unrestricted navigation | |
| Dimensions | |
| Length | 53.5 m |
| Beam | 24.0 m |
| Depth | 3.0 m |
| Draft | 2.3 m |
| GT | 1,050 |
| Crane capacity * | |
| Crane | 600 kW |
| Duty cycle | 24.5 t max |
| Clamshell | 7.5 m3 HD Hydr. |
| Dredging depth | 21 m (can be extended) |
| Lifting | 29 t max @ 30 m reach |
| Lifting height | 42 m, 23 t @ 38 m reach |
| * Various Duty cycle and Lifting load charts available | |
| Deck equipment | |
| 4-Point Mooring | 2 x fwd + 2 x aft |
| Anchors | Delta flipper |
| Container | 1 x mess, 1 x office |
| Machinery | |
| Generator | 3 x 400 kVA |
| Aux generator | 1 x 37 kVA |
| Fuel tank | 25 m3 |
