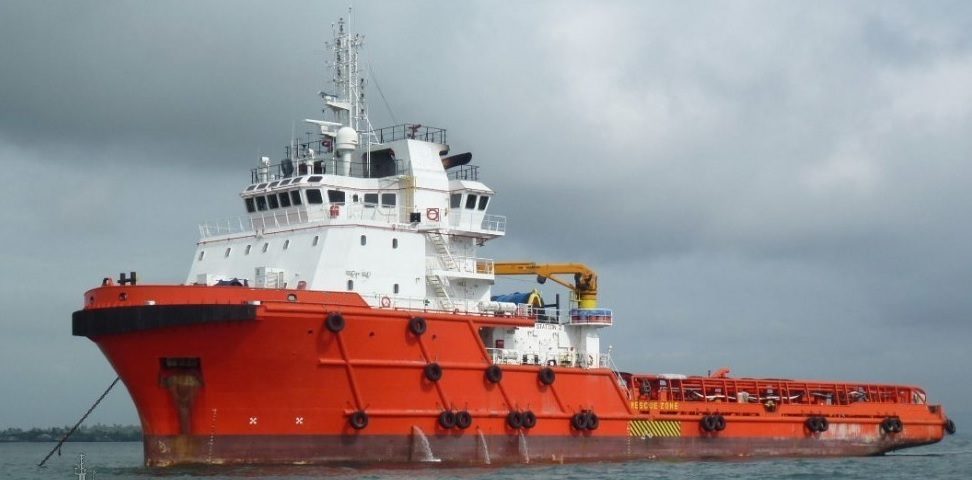

165 tbp DP-2 FiFi-1 AHTS
2012, BV. Loa 76.0 m, width 18.50 m, depth 8.00 m, max draft 6.00 m. DW 2,900 tons. Deck Cargo 800 tons. Deck Area 580 m2. Location: Far East. Price: Inquire
| General | |
| Built | 2012 |
| Class Notation | BV, I ✠ Hull, ✠ Mach, Towing Offshore Support Vessel / AHT / |
| FiFi 1 – Water Spraying, + AUT – UMS, + Dynafos – AM/AT-R, | |
| Unrestricted Navigation | |
| Dimensions | |
| Length oa | 76.0 m |
| Width | 18.5 m |
| Depth | 8.0 m |
| Max Draft | 6.0 m |
| GRT | 3,510 |
| Performance | |
| Bollard Pull | 165 t |
| Speed | 12 knots, |
| Speed eco | 10 knots |
| Max speed | 1,850 ltr/h |
| Generator | 120 ltr/h |
| Deck capability | |
| Deck Strength | 7.5 t/m2 |
| Clear Deck space | 580 m2 |
| Deck Cargo | 800 t |
| Deadweight | 2,900 tonnes |
| Machinery | |
| Main Engines | 2 x MAK, 4500 kW each |
| Auxiliary Engines | 2 x CAT, 425 ekW each |
| Shaft Generators | 2 x 2300 kW |
| Propulsion | 2 x Berg CPP package – 4 Blades |
| Bow Thruster | 2 x 10 t Berg, 650 kW e-motor driven |
| Stern Thruster | 1 x 10 t Berg, 650 kW e-motor driven |
| DP System | DP-2, Kongsberg |
| Deck equipment | |
| AH / Towing winch | Double drum, waterfall arrangement |
| Fork and Towing Pins | 2 x Karm dia 450 mm with flaps for horizontal locking, 300 ton. |
| Stern roller | 4.5 m x Ø2.3 m/Ø2.5 m, SWL 450 tons |
| Deck crane | 1 x |
| Tugger Winch | 2 x |
| Storage Reel | 2 x electro-hydraulic |
| Capstan | 2 x electro-hydraulic |
| Fire Fighting | |
| Pumps | 1,500 m3/h at 14 bar Jason/Aker |
| Monitor | 1,200 m3/h at 12 bar & 120 m throw length |
| Tank capacities | |
| Fuel Oil | 1,000 m3 |
| Fresh Water | 700 m3 |
| Drill Water | 900 m3 |
| Liquid Mud | 800 m3 |
| Dry Bulk | 310 m3 |
| Foam | 10 m3 |
| Detergent | 10 m3 |
| Base Oil / Brine | 140 m3 |
| Bilge Holding Tank | 10 m3 |
| Dirty Bilge Tank | 11 m3 |
| Navigation & Communication equipment | |
| GMDSS | Area 3 |
| Gyro Compass | 1 x Gyrostar II |
| Radar | 2 x Furuno FR 1510 |
| Echo sounder | 1 x Furuno FE 700 |
| SART | 2 x Mc Murdo RT-9 |
| EPIRB | 1 x Saracom EB-10 |
| Navtax Receiver | 1 x Furuno NX-500 |
| Autopilot | 1 x Raytheon NP-60 |
| Weather Fax | 1 x Furuno FAX-207 |
| Speed Log | 1 x Furuno DS-80 |
| GPS Plotter | 1 x Furuno GP-90 |
| Accommodation | |
| Cabins | 6 x 1-berth, 20 x 2-berth, 1 x Sickbay |
| Total | Fully air conditioning total 46 berth |
| Life Saving equipment | |
| As per SOLAS 74/78, and Registry and Classification’s requirements | |
| Life Rafts | 6 x 25 men |
| Rescue Boat | 1 x 6 men rigid inflatable c/w davit & 40 HP outboard engine |
| Compressor | 1 x BA recharging compressor |
| Gas detection | 5 H2S & Hydocarbon sensors |
