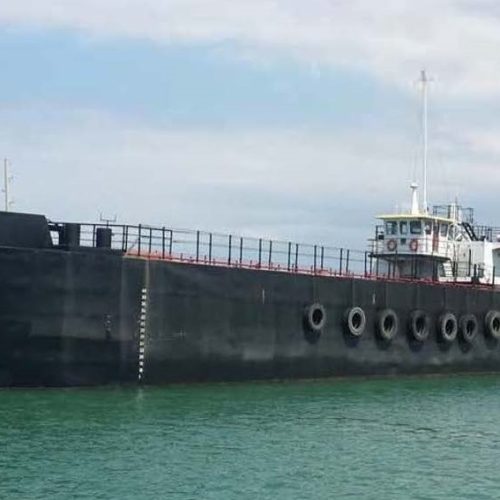

700 m3 Self-propelled Split Hopper Barge (2 sisters)
17 septiembre 2018
Self-propelled Excavator Hopper Dredger
21 octubre 2018
Self-propelled Grab Hopper Dredger
100 m³ Self-propelled Grab Hopper Dredger, 150 t hopper capacity, Well equipped. Ideal for breakwater / rock works as well as maintenance dredging in small ports. Available for charter only in the North Sea, Irish Sea & Baltic Sea region. For more information, rates etc please Enquire
| General | |
| Rebuilt | Early 2000′ |
| Class | Flagstate Authority |
| Dimensions | |
| Length | 32 m |
| Beam | 7.5 m |
| Draft Loaded | 2.3 m |
| GRT | 160 |
| Dredging equipment | |
| Crane | Sennebogen 625 |
| Boom | 16.0 m (option 22-28 m) |
| Dredging depth | 30 m |
| Lifting capacity | 12 – 15 t |
| Load limit device | PDS2000 load and draft system |
| Performance | |
| Hopper volume | 100 m3 |
| Load capacity | 150 t |
| Speed loaded | 6.0 knots |
| Speed ballast | 8.5 knots |
| Machinery | |
| Main engine | 1 x Iveco, 275 kW |
| Deck equipment | |
| Spuds | 2 x for depths up to 12 m |
| 3-point mooring | Bow: 2 x 7 t, Stern: 1 x 2 t |
| Navigation & Communication | |
| GMDSS | A1 + A2 |
| DGPS | Yes |
| RTK | Yes |
| Accommodation | |
| Crew | 4 |
| Safety equipment | For 10 persons |
