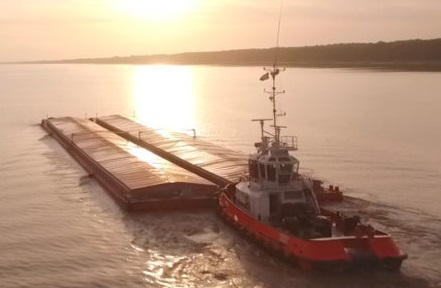

39 tbp Barge handling tugs (4 sisters)
2006, BV class, 39 tbp well maintained, Twin screw barge handling tugs. L x B: 22 x 8 m. Cat engines, Towing and bargehandling winches. 8 men accommodation. location Caribbean. Enquire
| General | |
| Built | 2006 |
| Class | BV, I ✠ Hull • Mach, Tug, unrestricted |
| Dimensions | |
| Length | 22.6 m |
| Draft | 7.8 m |
| Depth | 3.75 m |
| Draft | 3.6 m |
| GRT | 140 |
| Performance | |
| Speed | 12 knots |
| Bollard pull | 39 t |
| Machinery | |
| Main engines | 2 x Cat. 3512B TA/B, 1014 kW each |
| Propulsion | 2 x FPP in nozzles |
| Generators | 2 x Cat. 3304B, 70 kVA each |
| FiFi set (one sister only) | 1 x Cat. 3304B, 300 m3/h |
| Deck equipment | |
| Towing winch | DD, 30 t @ 10 m/min |
| Tugger winch | 2 x 10 t @ 9 m/min |
| Fendering | Pushbow, and all around |
| Search light | 2 x 1,000 W |
| Tank capacity | |
| Fuel | 36 m3 |
| Fresh water | 8.5 m3 |
| Foam | 2.3 m3 |
| Navigation & communication | |
| 2 x Radar, Autopilot, GPS, Echo sounder, VHF-DSC, SSB, Navtex | |
| Accommodation | |
| Cabins | 2 x 1-berth, 1 x 2-berth, 1 x 4-berth |
| Other | Galley, mess/dayroom and sanitary |
