208 tbp AHTS ERRV DP-2 FiFi-1 NOFO (2 sisters)

2009, DNV. DP-2, FiFi-1, NOFO 2005. Loa 74.5 m, width 17.20 m, draft 6.20 m. DW 3,000 tons. Deck cargo: 1,300 t. Deck Area 530 m2. Rated for 280 survivors. Location: North Sea. Inquire

Artikelnummer: B0084 Categorieën: , Tags: ,
MAIN DETAILS

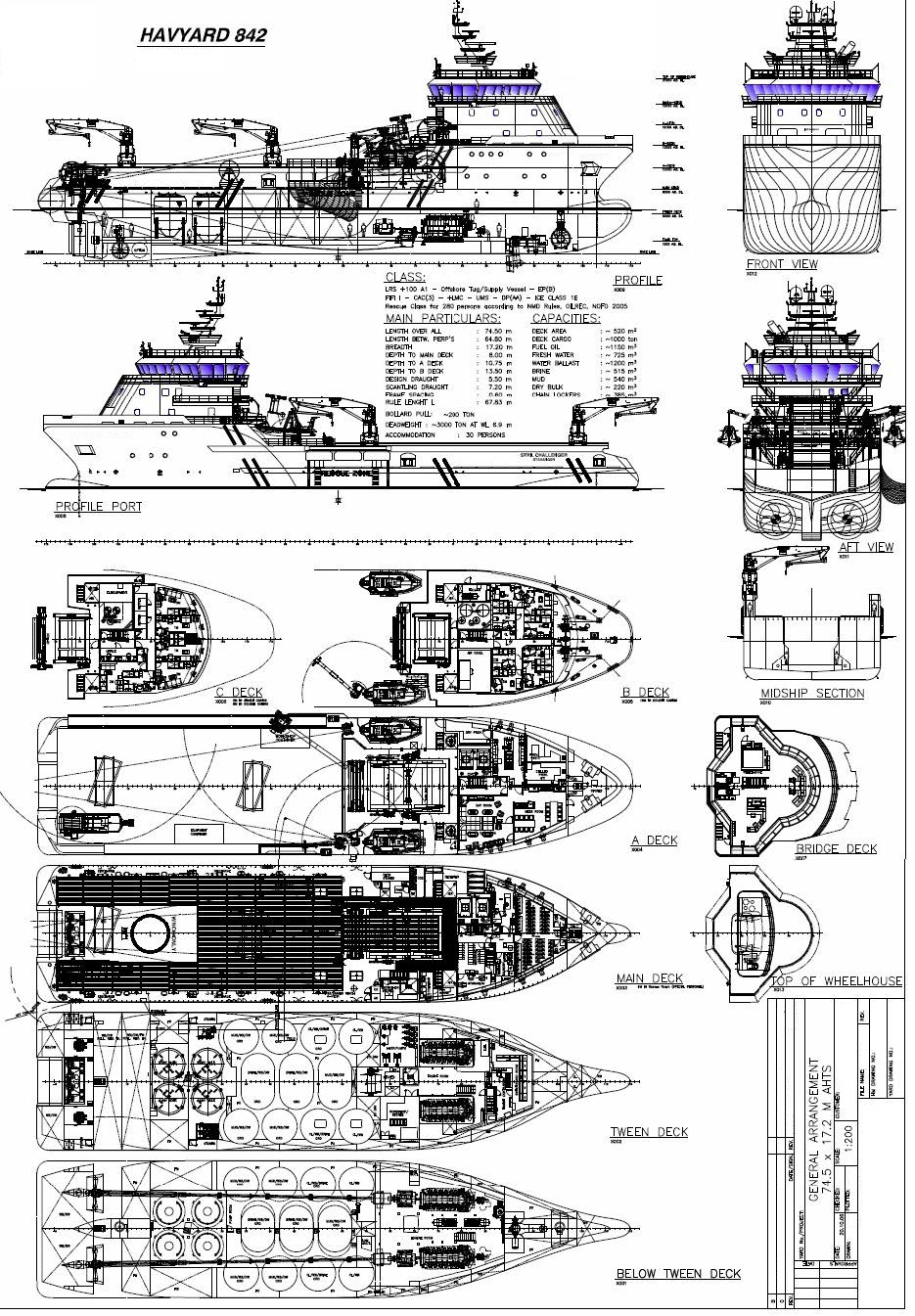

Type Havyard 842
Built 2009
Class DNV, +1A1 Fire fighter(I) Offshore service vessel(Towing)
  Clean Comf(V-3) Dynpos(AUTR) E0 Ice(E) OILREC

DIMENSIONS
Length .o.a. 74.50 m
Breadth 17.20 m
Summer draft 6.90 m
GT 2800 t
DWT 3000 t

DECK SPACE / STRENGTH
Deck areal 530 m²
Deck Cargo 1300 tons
Deck strength 10 t/m²

PERFORMANCE & CONSUMPTION
Max speed: 14 knots – approx. 20 t/Day (5m draft)
Eco Speed: 10 knots – approx. 10 t/day (5m draft)
DP operation: approx. 8 t/day
Stand by: approx. 4 t/day (outside 500m zone)
Anchor handling approx. 30 t/day (40% load on propellers)
Bollard Pull 208 tonnes

DYNAMIC POSITION SYSTEM DP-2
SDP Kongsberg k-pos/c-joy/c-wing
D-GPS 2 x Kongsberg Seatex DPS 200
Fanbeam laser 1 x

ENGINES AND PROPULSION
Main Engines 2 x MAK 12 M32 C, 6000 kW each
Auxiliaries 2x Caterpillar C18 DITA, rating each 601 kW each
Shaft generators 2 x Mirelli, rating each 3000 kVA 1200 rpm
Gearbox 2x RR type Singe Reduction 3000AGSC KS560
Propellers 2x RR, d=4.1 m, c.p. in nozzle
Thrusters bow 1x RR El driven azimuth type Swing-up, 883 kW
1x RR El driven tunnel thruster fwd, 883 kW
Thrusters aft 1x RR El driven tunnel thruster aft, 883 kW

WINCH AND DECK MACHINERY
AH winch 1 x 370t /Braking hold 500 tonnes, first layer.
Towing winch 1 x 370t / Braking hold 500 tonnes, first layer,
with dividing flange
Secondary winch 1 x 75t first layer, with dividing flange
Spare drum 1 x 1500m 77mm wire on tween deck
Tugger winch 2 x 20 tonnes.100 m x 24 mm wire
Capstans 2 x 10 tonnes
2 x Karm Fork ø500 mm
w/MBL 650 ton wire/chain up to 125 mm
Crane 1 Dreggen Hydr./Elec. Knuckle boom DKF40 – 3,[email protected]
Crane 2 Dreggen rail knuckle boom DKFR100 – [email protected]
ANCHOR HANDLING CAPACITY
1 x declutch able drum, 370 t pull 500 t brake, with dividing flange:
  2 x 2480 m ø 77 mm wire,
  – or 1436 m of 150 mm rope
  – or 1111 m of 160 mm rope
  – or 1073 m of 180 mm rope
  – or 754 m of 203 mm rope
  – or 730 m of 210 mm rope
1 x AHT drum, 350 t pull 500 t brake:
  5500 m ø 77 mm wire,
  – or 1436 m of 150 mm rope
  – or 1111 m of 160 mm rope
  – or 1037 m of 180 mm rope
  – or 745 m of 230 mm rope
  – or 730 m of 210 mm rope
Secondary drum with dividing flanges, 75 t pull,:
  SB part: 1150 m ø 77 mm wire
  PS part: 4472 m ø 77 mm wire
  – or 1141 m of 150 mm rope
  – or 1105 m of 160 mm rope
  – or 851 m of 180 mm rope
  – or 634 m of 203 mm rope
  – or 624 m of 210 mm rope
4 off Rig chain lockers with total chain capacity 383 m³
-4 x 1290 m of 76 mm chain or
-4 x 1050 m of 84 mm chain
Stern Roller: 3000 x 6000 mm 500 t MWL
Karmøy (AH) 2 x 650 t SWL
Karmøy (Towing) 4 x 300 t SWL
Gypsies 2 x 76 mm Fitted on winch
Gypsies 2 x 84 mm Stored on board
Chain Roller RRM Brattvåg 70 – 165 mm
J – Hook 1 x 150 t SWL
Grapnel 1 x 150 t SWL

TANK CAPACITIES
Ballast water 1526 m3
Drill water 1362 m3
Pot water 707 m3
Dry bulk cargo tanks 215 m3
Fuel oil 1157 m3
Urea 38 m3
Liquid Mud 532 m3
Liquid Brine 503 m3
Recovered oil 1036 m3
Rig Chain Lockers 378 m3

CARGO DISCHARGING PUMPS
Fuel oil 2x 200 m³/h – 9 bar, 4” Avery Hardol male
DW/Ballast 2x 200 m³/h – 9 bar, 4” Weco female
Potable water 2x 200 m³/h – 9 bar, 4” Weco female
Liquid Mud 2x 75 m³/h – 24 bar, 4” Weco female
Brine 1x 75 m³/h – 18 bar, 4” Weco male
Dry bulk 2x 25.6 m³/h – 6 bar, 5” Weco female
ORO pumps 3x 100-60 m³/h – 3-7 bar

RESCUE AND LIFE SAVING EQUIPMENT
Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore communication
Medical equipment /Medicines in acc. to NMD.
1 off Mob Boat type GTC 700
1 off Mob Boat type GTC 700
1 off Dacon rescue net
Rescue Certificate for 280 persons

NAVIGATION EQUIPMENT
Electronic chart 1 x Telchart T-2026
radar 1 x 10 cm ARPA Furuno Far-2837 S BB
radar 1 x 3 cm ARPA Furuno FAR-2117 BB
D-GPS 1 x GP- 150
GYRO 3 x Navigat X Mk 2 Mod 10
Magnetic compass 1 x 8”
Autopilot 1 x Navipilot 4000
Echo-sounder 1 x Skipper GDS 102
Doppler log 1 x JRC JLN-205
Voyage data recorder 1 x Furuno VR-3000
AIS 1 x FA-150

COMMUNICATION SYSTEMS
GMDSS-A3 (WW)
VHF direction finder 1 x Taio TD-L1550
NAVTEX 1 x NAV 7
MF/HF SSB 1 x Furuno, FS-2570. Radio Station
Portable VHF 3 x Navico AXIS 30
EPIRB 1 x Mc Murdo E5, automatic release
EPIRB 1 x Mc Murdo E5, manual release
SART 2 x Mc Murdo Radar Transonder, S4
INMARSAT 2 x Furuno, Felcom 15
SSAS 1 x Furuno Mod kit, incl. 2 x Alert active pnt
Fleet broadband 1 x Sailor 250
Duplex 2 x SAILOR RT 5020-, Class A DSC
Simplex 2 x SAILOR RT 480+0 VHF
UHF 3 x Motorola GM 380, Fix mounted
UHF 4 x Motorola GP 380, Portable, waterproof.
GSM Cell phone 2 x.
GSM Cell phone 1 x for high speed data

ACCOMMODATION
Cabins 2 x Single Cabins
12 x Double Cabin
1x Deck Office
1x Hospital, incl. 1 bed
1x Conference Room
Total 26  Persons

OIL RECOVERY SPECIFICATIONS
Arranged and approved according to NOFO 2005 requirements

QSHE CERTIFICATION
ISM, ISPS, ISO-9001:2008, ISO-14001:2004

QA QUALIFICATIONS
FPAL, Achilles, Sellihca, OVID registered & IMCA Member
