300 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic & tropical conditions. location: Eastern Med. Inquire
| GENERAL | |
| Built 2009 | |
| Classification | BV – II +HULL • MACH Special service/ accommodation barge- no propulsion, |
| Sheltered area Offshore Sheltered Enclosures, Hsig. Max 0.5 mtr | |
| DIMENSIONS | |
| Length overall | 116.00 m |
| Beam | 11.40 m |
| Depth | 4.50 m |
| Summer load draft | 3.0 m |
| Light ship draft | 1.62 m |
| GT / NT | 3,590 / 1,440 |
| CAPACITIES | |
| Fresh water | 300 m3 |
| Sewage | 900 m3 |
| Fuel Oil | 100 m3 |
| Waste storage skips | 4 |
| ACCOMMODATION | |
| Complement | 400 persons |
| Cabins | 75 x 4-berth cabins, each cabin have its dedicated wet cell |

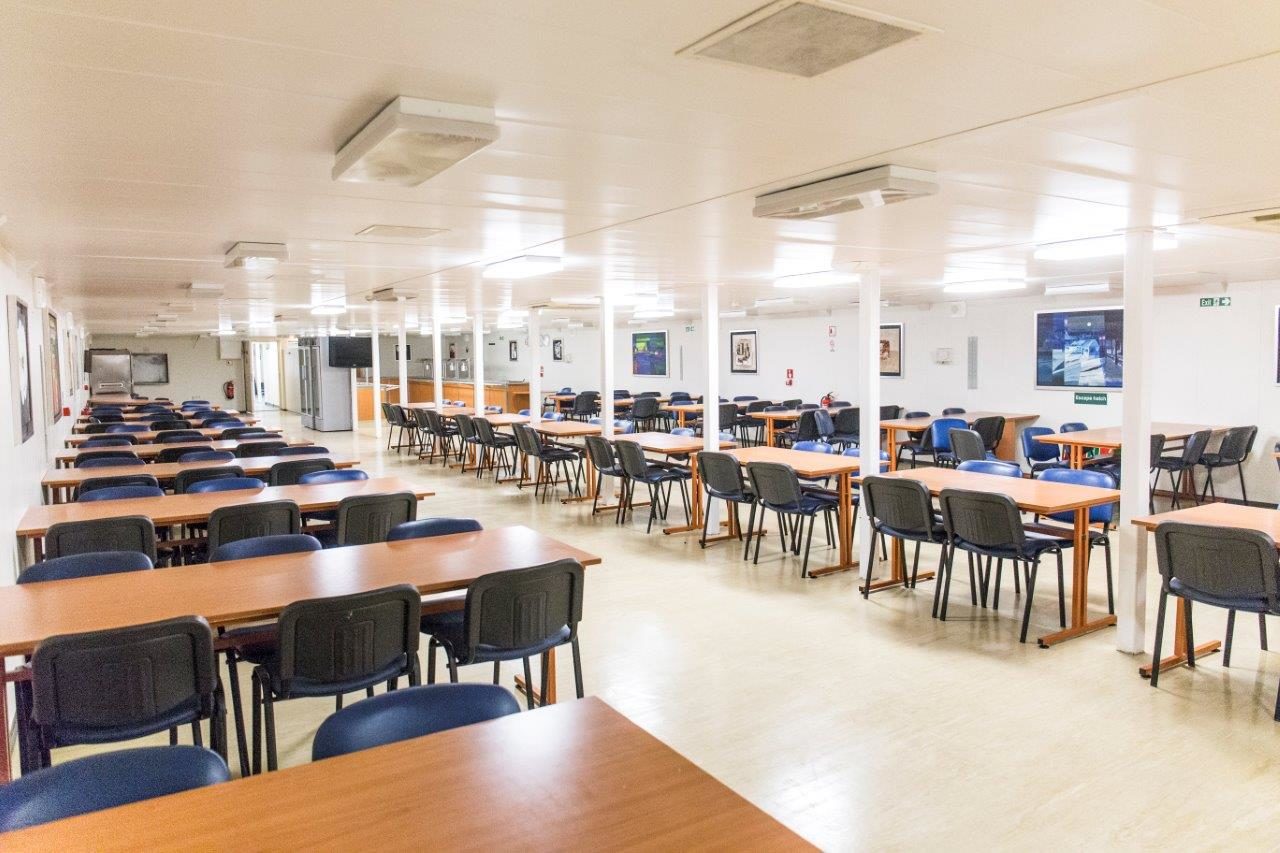

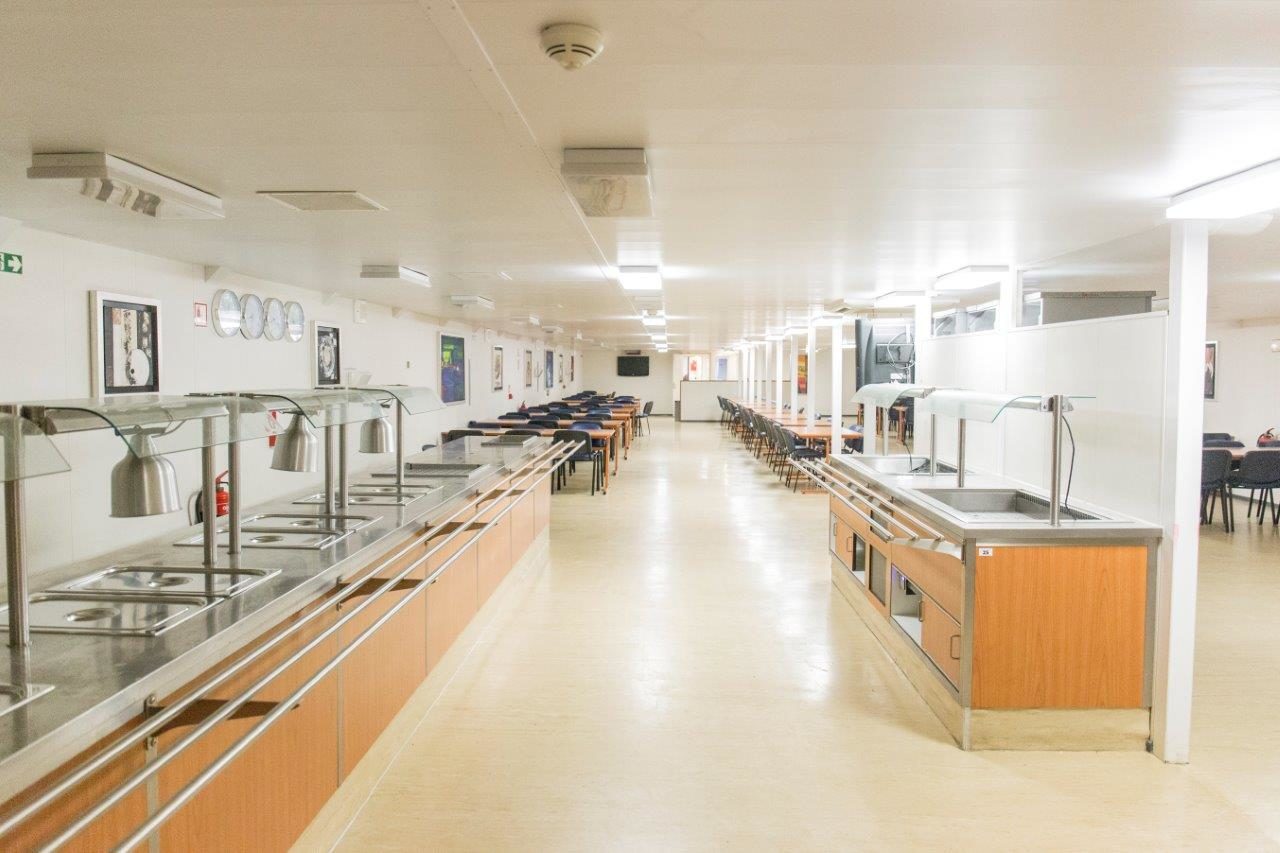

| Other facilities: | Galley and Cold/drystore capacity Messroom, Dayrooms, Fitness room |
| Internet cafe, Hospital, Changeroom, Office, Reception and Laundry | |
| MACHINERY / PERFORMANCE | |
| Main diesel | 3 x Scania D11655M, 426 kW |
| Aux. Generator | SISU 420SRG 75 kW |
| DECK EQUIPMENT | |
| Deck crane | AFB170/10, SWL 10 ton / 10 m, Double pull use, Max radius 10m, min radius 1.72 m |
| Anchors | Klip Anchors – 1000 kg – 3 pcs |
| Smit bracket | |
| ENDURANCE | |
| 12 days, based on 200 ltr sewage water production per man per day. | |
| FRESH WATERMAKERS | |
| 5 units x 12,5 ton/day @ 5C° (outboard) Note: Ability to use depends on the sea-water quality at location. | |
| HVAC | |
| Design | Summer: outside +40C°/ 70% RH / inside +27C°/ 50% RH |
| Winter: outside -36C° / inside +18C° | |
| ENVIRONMENTAL | |
| Zero dumping provisions | |
| Sewage plant Outlet criteria in accordance with RosR. suitable for 300 pax. | |
| Incinerator TeaTech 500 | |
