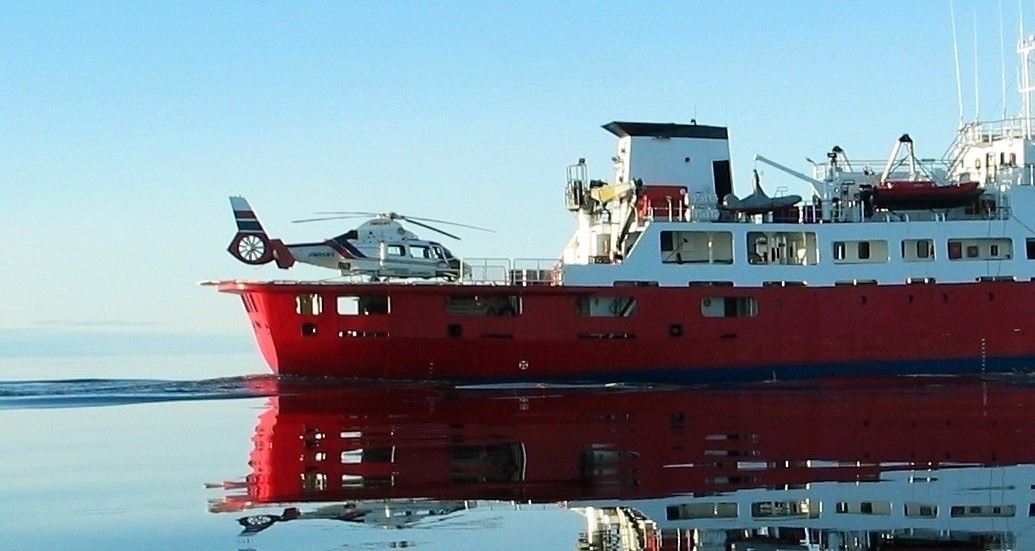

Oceanic / Arctic Survey Vessel
Solid built Oceanic / Arctic Survey vessel, ideal for arctic expedition / yacht conversion. Includes full array of survey equipment, Helideck, on board refuelling station, two RIBs each with launch frame and suffient accommodation for 45 pax. Location: North Sea. Enquire
| General | |
| Built / converted | 1983 / 2003 & 2014 |
| Class | BV, I ✠ Hull ✠ Mach, General cargo ship, Unrestricted |
| navigation, ✠ AUT-UMS (SS), ice class IA | |
| Dimensions | |
| Length | 71.5 m |
| Breadth | 12.8 m |
| Depth | 6.5 m |
| Draught | 4.8 m |
| GRT | 1,860 |
| Performance | |
| Transit Speed | 8 knots |
| Maximum Speed | 12 knots |
| Endurance | 28 days (nominal) |
| Tank capacity | |
| Fuel | 375 m3 |
| Fresh Water | 245 m3 |
| Machinery | |
| Main Engine | 2 x Rumo G74, 1170 kW each |
| Propulsion | 1 x CPP, 4-bladed |
| Bow thruster | 1 x Jastram BU20F tunnel type |
| Stern thruster | 1 x Jastram BU20F tunnel type |
| Shaft generator | 1 x 260 kW / 325 kVA |
| Generators | 3 x Scania D1950, 192 kW / 240 kVA each |
| Port generator | 1 x 50 kW / 63 kVA |
| Deck equipment | |
| Deck crane fwd | 1.6 t @ 8.5 m |
| Deck crane aft | 2 t @ 12 m |
| Cargo hold | 2 x fwd, 2 x aft, total 700 m3 |
| Deck cargo | 2 x 20ft container twist locks |
| Helideck | Aft, EC135, refuelling capability |
| Safety equipment | |
| Rescue Boat | 2 x RiB c/w inboard engine |
| Rescue Boat | Dayfer Narwhal SV400, 25 hp outboard |
| Life Rafts | 6 x RFD Surviva 25-person |
| Fire Fighting | In accordance with SOLAS |
| Communications | |
| Iridium Pilot, Fleet 250, GMDSS Handhelds (A1-A4), Sat-C Telex, Internal Telephone Exchange | |
| Navigation & Survey equipment | |
| Radars | 2 x Sperry Bridgemaster E (S-Band & X-Band) |
| Autopilot | Simrad APS0 |
| Gyrocompass | TSS Meridian Surveyor |
| Echo sounder | Skipper GDSlOl |
| Positioning Systems | C&C C-Nav3050 & C-NaviGator (Primary & Secondary) |
| Seapath 200 | |
| Kongsberg MRUS | |
| Underwater Positioning | Sonardyne USBL |
| Single Beam Echo sounder | Kongsberg EA 400 |
| Multibeam Echo sounder | Kongsberg EM 710 (1 °x 1°) |
| SV Probe | AML |
| 2DHR Seismic | 4 x 40 in3 Texas Instruments sleeve gun cluster |
| Sercel Sentinel digital streamer system (12.5 m group, 200m / 96 ch) | |
| SPW QC | |
| ProMAX QC & processing | |
| Depth Controllers | Ion 5011 Compass Bird |
| UHR Seismic Option | 6 in3 or 10 in3 Mini Airgun |
| 75m streamer (3.125m group/ 24ch) | |
| Side Scan Sonar | Edgetech 4200 |
| Magnetometer | Geometrics G882 |
| Sub Bottom Profilers | 16-element hull-mounted Pinger Applied Acoustics |
| Squid 500 Sparker 10 in3 Mini Airgun | |
| EG&G sub & surfacetow Boomers | |
| Environmental | Deep water HD video and stills camera systems |
| Accommodation | |
| Total Berths | 45 |
| Other spaces | 2 x Mess, Lounge, Recreation / Media room, Conference room, Gym |
