330ft Heavy Load Barge
2011 Heavy load barge, ABS, lxbxd (m) 100 x 36.5 x 6.1 (330′ x 120′ x 20′), 25 ton/m², 13,000 ton deadweight. Wel documented and well maintained. Owners besides open to chartering also considering HP and Buy-back options as well as straight sale.
| General | |
| Type | Deck Cargo and Ballast Tank Barge |
| Built | 2011 |
| Class | ABS, ✠ A1, Barge |
| Dimensions | |
| Length oa | 100.5 m (330 feet) |
| Beam | 36.5 m (120 feet) |
| Depth Mld | 6.1 m (20 feet) |
| Load capacity | |
| Deadweight | 13,020 ton |
| Deck Load | 25 t/m2 |
| Deck Equipment | |
| Mooring Bollards | 8 x Double |
| Towing Brackets | 2 sets “Smit” 100 t SWL fitted forward & aft |
| Anchor Winch | 1 x 5 tons manual operated winch |
| Anchor | 1 x 2,100 kg Stockless Bower Anchor |
| Fender (PS & SB) | 3 rows 250mm Ø Sch. 80 half round pipe |
| Manhole | 1 flush manhole for each tank 500 mm dia |
| Navigation Lights | One set |
| Construction | |
| All welded steel construction with flush main deck, fitted with twin skegs at stern | |
| Transverse Bulkhead | 7, watertight |
| Longitudinal Bulkhead | 4, watertight |
| No. of compartments | 28 |

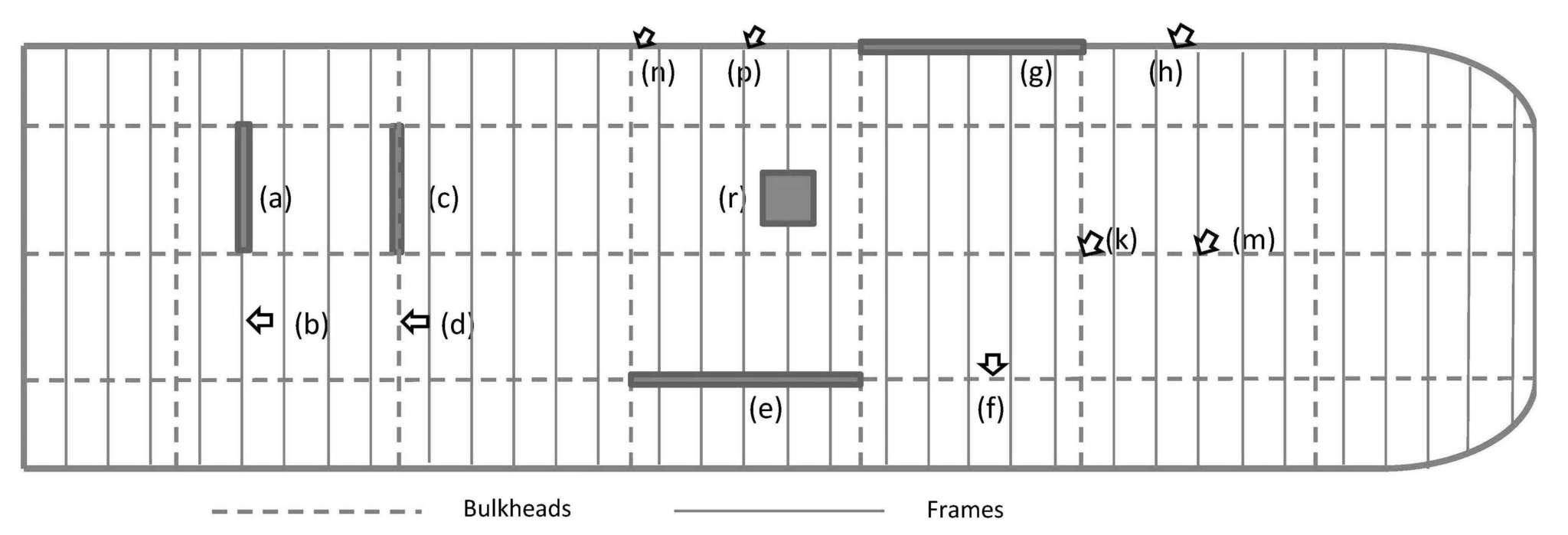

| Summary of allowable loads: | ||||
| Transverse Frames | Side Shell | |||
| (a) | 170 t/m2 | (g) | 598 t/m2 | |
| (b) | 125 t | (h) | ||
| Transverse Bulkheads | Intersection of Structures | |||
| (c) | 505 t/m2 | (k) | 114 t | |
| (d) | 33 t | (m) | 290 t | |
| Longitudinal Bulkheads | (n) | 116 t | ||
| (e) | 517 t/m2 | (p) | 334 t | |
| (f) | ||||
