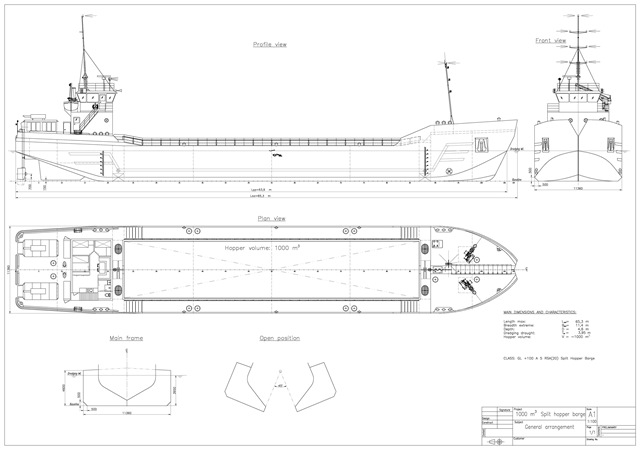

1000 m³ Self-propelled Split Hopper Barge NB
IACS class, l x b x d (m): 65.0 x 11.5 x 4.40 Deadweight 1,800 t. Propulsion: 2 x 450 kW rudder propeller. Location: EU. Inquire
| General | |
| Built | 10-12 month after date of order |
| IACS Class | e.g.: GL, +100 A 5 RSA(20) Split Hopper Barge |
| Dimensions | |
| Length oa | 65.0 m |
| Beam | 11.5 m |
| Depth mld | 4.40 m |
| Draft (LL exem.) | 3.95 m |
| Hopper volume | 1,000 m3 |
| Deadweight (LL exem.) | 1,800 t |
| Machinery | |
| Propulsion | 2 x 450 kW rudder propeller |
| Bow thruster | 1 x |
| Split cylinders | 2 x, operated by hydraulic power pack |
| Overflow | Manually adjustable |
| Safety and firefighting equipment | |
| As per flag state requirements | |
| Accommodation | |
| Cabins | 3 x 1-berth ( optional 1 x 1-berth, 2 x 2-berth) |
| Other | Galley/mess room, toilet & shower |
| Air conditioning | Split unit |
