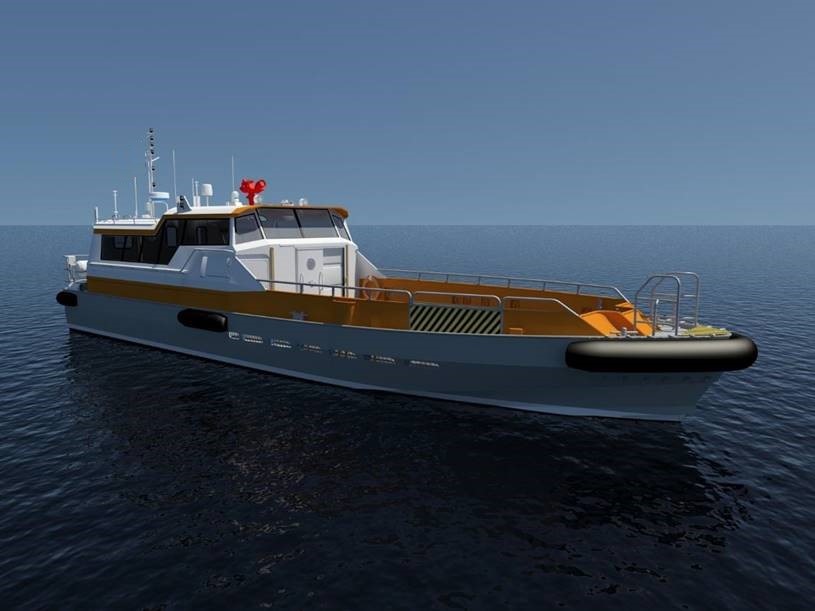

FSIV (Fast Intervention & Supply Vessel)
5 september 2016
Fast Crewboat / Utility Vessel
5 september 2016
Fast Crewboat / Utility Vessel (2 sisters)
Offshore industry spec, mono hull, jet props
L x b x d(m): 19.0 x 5.1 x 0.95, Speed: 28 knots at full load (30t displacement) condition, 4 ton cargo capacity, deck area: 21m² @ 500kg/m², propulsion: 2 x 675 kW, Hamilton, jets. Endurance: 300 Nm, 25 pax + 2 crew or 30 pax + 2 crew.
| General | |
| Class | DNV |
| Construction | Mono hull |
| SOLAS compliant for the type and size of the vessel | |
| Dimensions | |
| Length oa | 19.0 m |
| Beam | 5.1 m |
| Draft | 0.95 m |
| Displacement | 31 t |
| Speed / Range / Consumption | |
| Max speed | 32 knots (medium load), 360 ltr/h |
| Cruising speed | 28 knots (25 pax), 300 ltr/h |
| 27 knots (30 pax), 300 ltr/h | |
| Fuel capacity | 3,300 l |
| Range | 300 Nm (at cruising speed with 25 passengers) |
| Machinery | |
| Main engines | 2 x MAN 2842 LE 405, 675 kW each |
| Propulsion | 2 x Hamilton HJ 403 |
| Generator | 2 x 19 kVA |
| Deck | |
| Load | 4.0 t |
| Area | 28 m² (7.20 m x 3.90 m) |
| Strength | 500 kg/m² |
| Cargo height | 1.8 m max |
| Accommodation | |
| Fully air conditioned, Cabin and wheelhouse mounted on shock-absorbers | |
| Fire-fighting equipment | |
| Monitor | 350 m3/hr at 10 bar, operated from the wheelhouse |
| Electronics | |
| VHF SMDSM | ICOM GM 1600 |
| VHF | Sailor 6222 12V CC |
| Radar | Furuno 3 1835 |
| GPS | Koden KMP-920 |
| Chart reader | SW 50li 5” |
| Echo sounder | Furuno LS6100 12 V 200 khz |
| AIS | Transas M3 Class A |
| EPIRB | Smarfind E5 / Plus G5 |
