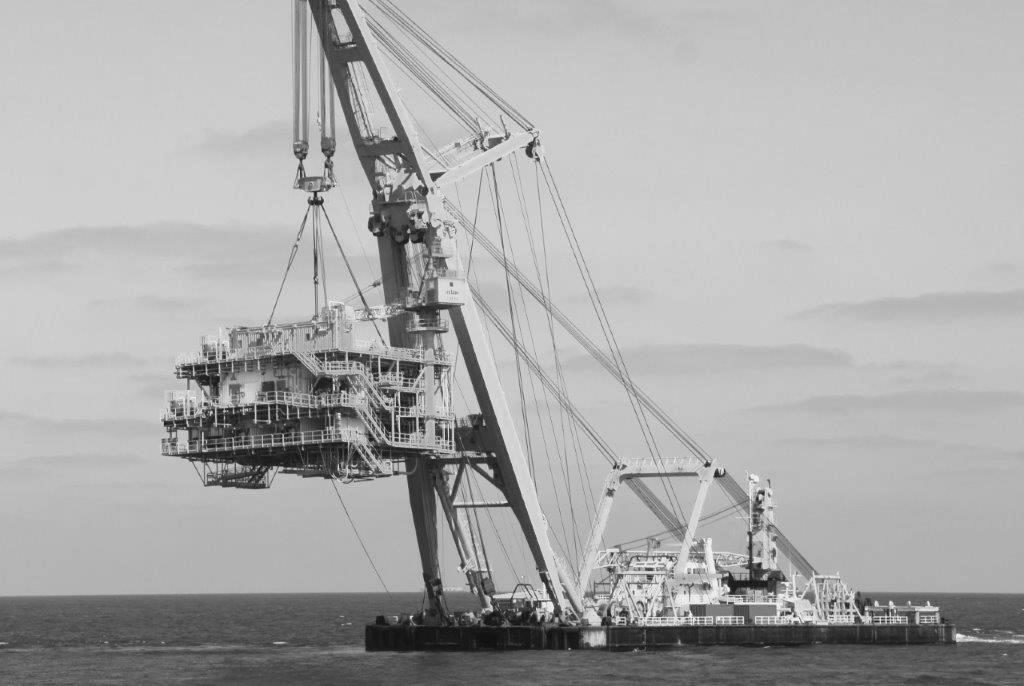

Versatile self-propelled Sheerleg for heavy lift marine construction, bridge construction, piling and salvage operations worldwide.

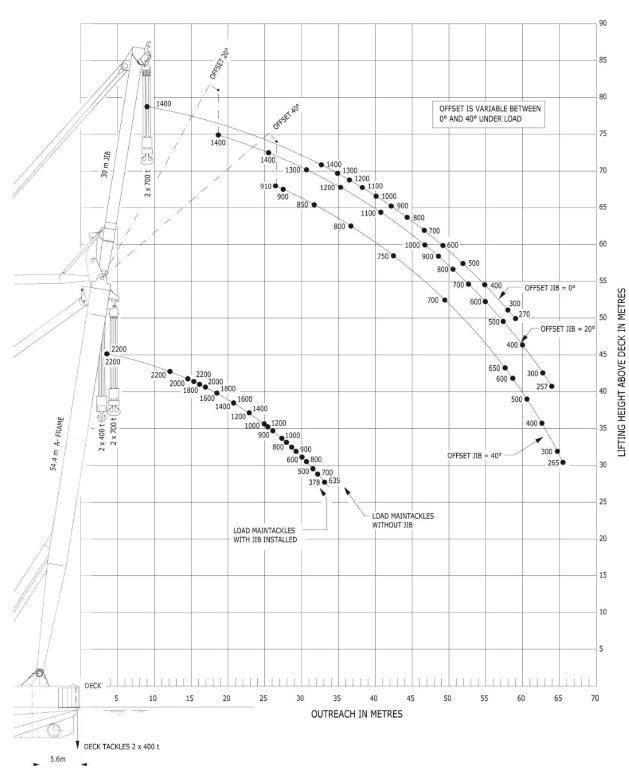

Sheerleg can be configured to clients’ specifications and lifts up to 1.200 tons at a height of 25 meters. With a jib up to 500 tons at a height of 45 meters.
Availability: Inquire
General | |
Built | 1981 |
Class | LR + 100 A 1 sheerlegs pontoon LA |
Dimensions | |
GT/NT | 5,700/1,700 |
Length | 83.20 m |
Beam | 36.90 m |
Depth | 7.00 m |
Draft (minimum) | 3.00 m |
Draft (maximum) | 6.02 m |
Machinery | |
Propulsion | 2 x 1,000 kW |
Bowthruster | 2 x 440 kW |
Mooring winches Aft | 3 x 25 tonnes capacity 500 m of 44 mm diameter wire rope |
2 x 40 tonnes capacity 625 m of 48 mm diameter wire rope | |
Mooring winches Fwd | 3 x 25 tonnes capacity 500 m of 44 mm diameter wire rope |
Features | |
Accommodation for 30 people (can be increased). |
Please contact us for more details
2005, BV, Loa 57.50 m, width 13.80 m, depth 5.50 m, draft 4.50 m. deadweight +/- 1,300 tons. deck cargo: +/- 500 tons. Deck area 350 m2, accommodation 42 persons. Price: Inquire
2004, BV, Loa 48.00 m, width 13.20 m, depth 5.20 m, draft 4.20 m. Deadweight +/- 860 tons. deck cargo: +/- 300 tons. Deck area 250 m2, accommodation 24 persons. ME Gulf Region Price: Inquire
Unrestricted operation. ABS/IRS class. SPS compliant. 8-point mooring. Helideck, 350 ton lattice boom crane. Location: Gulf region. For Charter only. Inquire
