Caisson Construction Dock
14 juni 2024

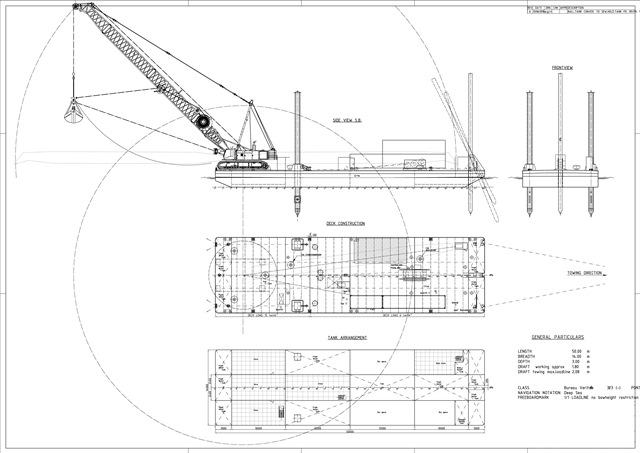

Crane Barge, Grab Dredger, Spud Pontoon
Crane Barge, Grab Dredger, Spud Pontoon equipped with a tracked Liebherr HS 895 HD lattice boom crane. Location: Central America. Equire
| General | |
| Built | Pontoon 2006, Crane 2013 |
| Class | BV, Hull, Special service, Grab dredger,- |
| no propulsion, Unrestricted navigation | |
| Dimensions | |
| Length | 50.0 m |
| Beam | 14.0 m |
| Depth | 3.0 m |
| Draft | 1.6 m |
| GRT | 550 |
| Mooring | |
| Spuds | Fwd: 2 x 22 m, aft: 1 x 25 m |
| Mooring / spud winches | 1 x 3-drum winch |
| Max operating depth | on spuds: 18.5 m, on anchors: 42 m |
| Grab | |
| Lattice boom crane | Liebherr HS 895 HD |
| Crane engine | 670 kW |
| Buckets | Range: 3.2 m3 – 7.5 m3 SAE |
