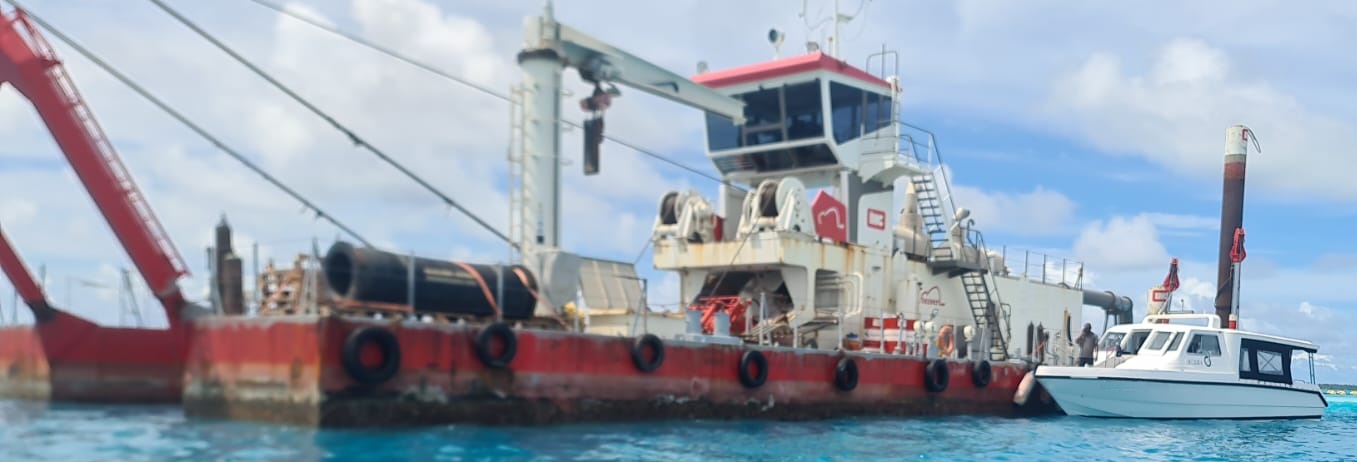

650mm (26″) modular Cutter Suction Dredger

2019, IHC 65 DDSP, BV class. Modular. Loa x B x D (m): 58 x 12.5 x 3.0. Dredge pump power: 1,825 kW. location: Middle East Gulf. Enquire

Artikelnummer: A0426-2 Categorie: Tag:
Built 2019
Class BV, I, ✠ Hull • Mach Dredger
no propulsion, Coastal area
Length overall 58 m
Length over pontoons 43.5 m
Beam 12.5 m
Depth 3.0 m
Draft (ops) 1.95 m
Side pontoons 43.5 x 4.7 x 3.0 m
Dredging capacity
Dredging depth 18 m
Cutting width 48.5 m – 59.5 m
Suction pipe diameter 650 mm
Discharge pipe diameter 650 mm
Machinery / Equipment
Dredge pump IHC HR/MD 121-26-60
Dredge pump engine Caterpillar 3516C SCAC, 1,825 kW @ 1,600rpm
Hydr. power pack C32 DITTA Acert, 994 kW
Electrical 24V DC, Power (50Hz) 26 kW
Cutter IHC, 700 kW, 30 rpm, Diameter 2.2 m
Ladder and swing winches Line pull 240 kN, line speed 23 m/min
Anchor booms Installed
Anchor, wires weight 1,500 kg, Wire 150 m x 36 mm
Spuds 23.4 m x 900 mm, weight 15,500kg
Spud hoisting cylinders 3.75 m stroke
Spud carriage cylinder 4.50 m stroke
Deck crane 4.0 t @ 5.1 m
