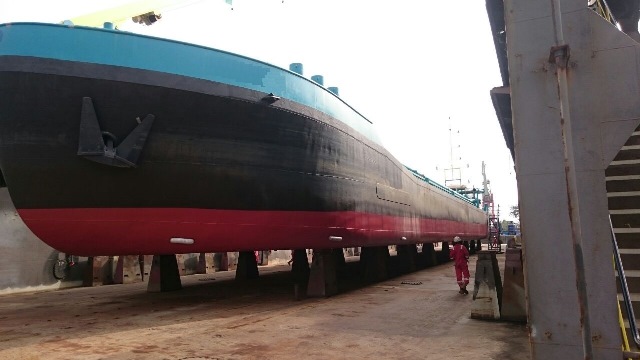

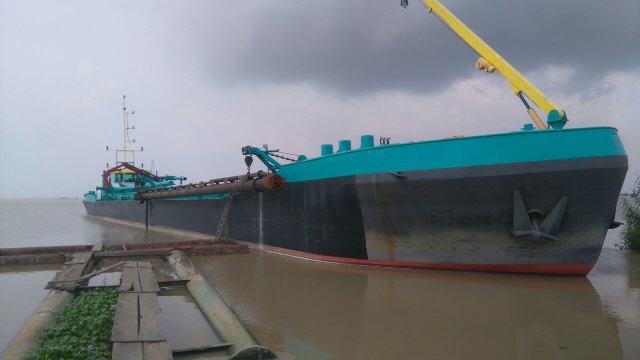

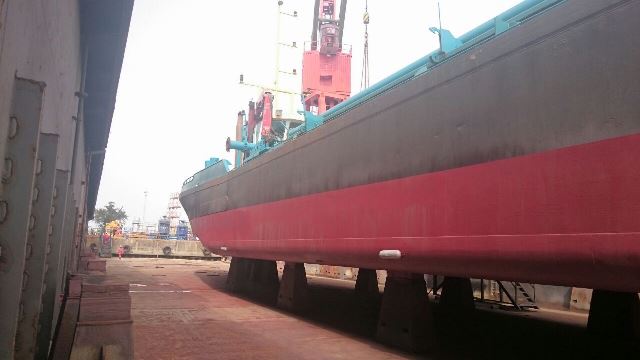

Very well maintained Dutch owned & operated Inland Hopper Dredger, suitable for sand mining and trailing operations. Vessel can be operated by two persons. Location WAF. Enquire
Dimensions | ||
Length oa | 70 m | |
Beam | 9,5 m | |
Depth | 2,8 m | |
Draft empty | 1.1 m | |
Dredging particulars | ||
Hopper volume | 740 m3 | |
Dead weight | 1,185 mt | |
Dredge pipe | 400 mm | |
Dredging depth | 20 m | |
Discharge method | Dry or pumping ashore through 400mm connection | |
Machinery | ||
Main engine | 610 bhp | |
Dredge pump | 680 bhp | |
Jet water pump | 210 bhp | |
Bow thruster | 273 bhp | |
Generator | 30 kva and 42,5 kva | |
Deck crane | 19 tm knuckle boom | |
|
||
Spuds | 2 x telescopic | |
Remarks | ||
Dredge pipe can be utilised both for stationary sand mining (facing forward) and trailing configuration | ||
Jet water pump can be utilised for dredging process as for fluidising the hopper | ||
Vessel can be operated by two persons |
Direct from owners: Built 1972, (mod. 1984), inland waters, l x b x d(m): 67.00 x 14.00 x 3.10. UWP: 500 kW, pump ashore facility: 178 kW, jet pump / bow jet: 270 kW. bottom discharger, de-gassing system, height(m): 9.80, propulsion: 2 x Schottel, 273 kW each. Price: Inquire
Towing, AHT, Dredge Support
2013, BV. l x w x d (m): 23.00 x 8,00 x 3,10. Max Draft: 2,60 m , 2 x Cat. C18, Winch, Double drum, Waterfall configuration. Inquire
Direct from owners: 1970, 10 m³ & 12 m³ clamshell buckets. Dredging depth: -40m. Crane fully modified, very short cycle times, Besides clamshell and dragline configuration also certified for lifting 120 t @ 14.5 m. Location: Australia. Price: Enquire
