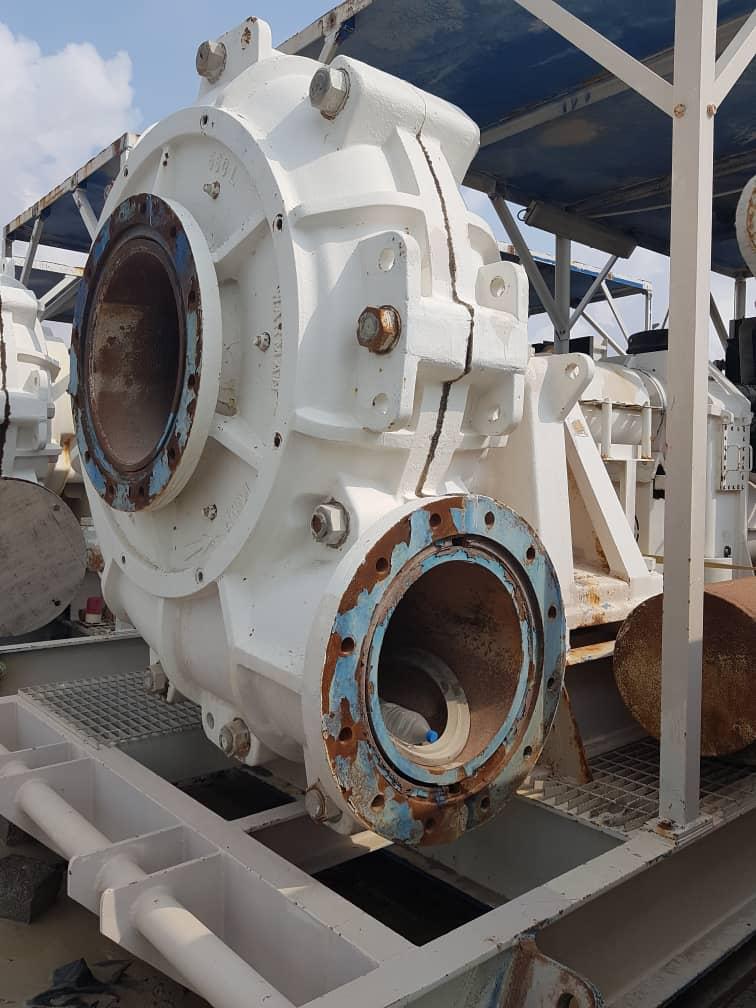

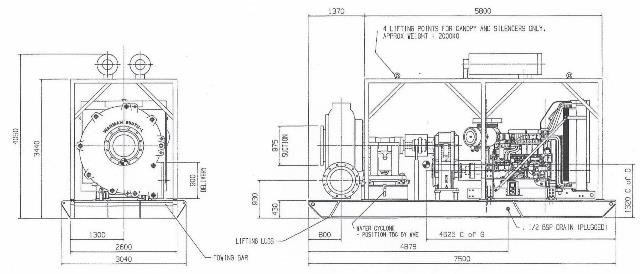

650 mm De-watering / Booster pump unit (multiple)
Multiple diesel driven de-watering / booster pump units mounted on skids. Owners prefer selling four units or more en-bloc. Enquire
| General | |
| Type | Land-based pump unit |
| Skidded | Yes |
| Fuel tank | 6.2 m3 |
| Weight (dry) | 23.7 t |
| Footprint | 3.1 m x 7.5 m |
| Height | 4.1 m |
| Pump | |
| Type / model | Warman 550TUL |
| Suction / discharge | 650 mm / 550 mm |
| Impeller dia | 1,230 mm |
| Capacity | 6,500 m³/h @ 34 m head |
| NPSH | 6 m (only) |
| Shaft seal | packed gland with water flush |
| Inner pump | Lined |
| Drive | |
| Engine | Cummins QST30, 780 kW @ 1800 rpm |
| Gearbox | 4.7:1 |
