GL. Containerised. L x B x Depth (m): 30.0 x 22.0 x 2.90. Max. operating depth 25 meter. payload: 400 t. Inquire

Artikelnummer: G0061 Categorieën: , , Tag:
GENERAL

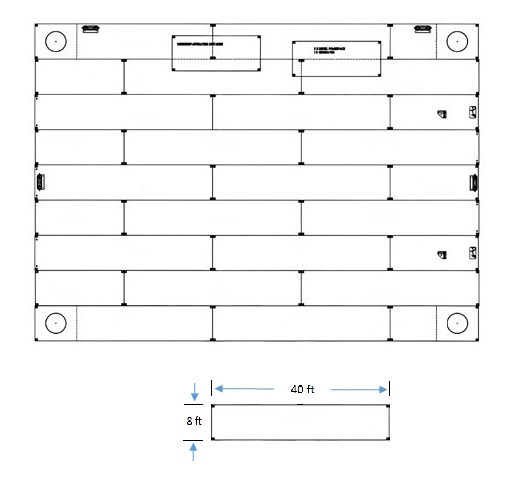

Type Modular, containerised
Class GL, + 100 A5 K (RSA 20) self-elevating unit

DIMENSIONS
Length 30.5 meter
Beam 22.0 meter
Depth 2.9 meter

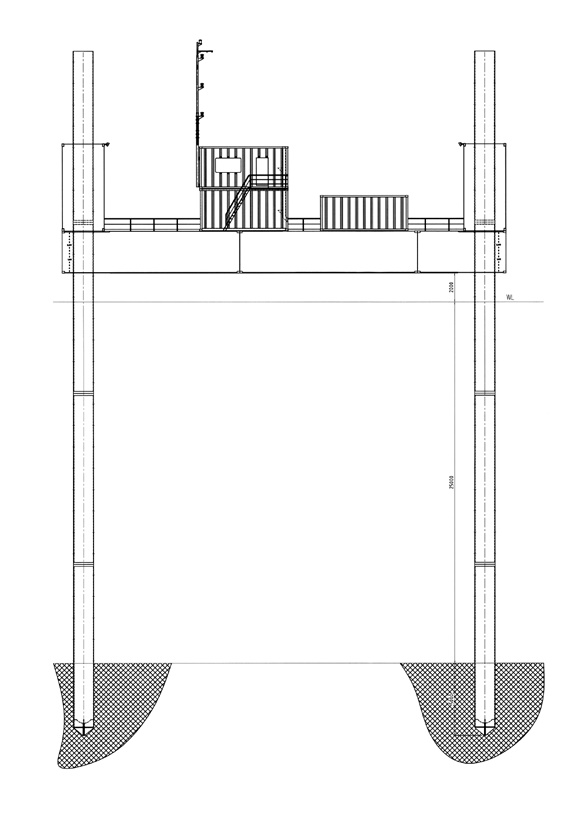

Leg length 47.0 meter
Leg diameter 1.4 meter
Moon pool optional

JACKING SYSTEM
Jacking speed 15 m/hr
Jacking stroke 1.5 m
Power pack 280 kW, Diesel hydraulic
Pay load 400 tons

OPERATION CONDITIONS
Water depth 25.0 m
Wave height 2.0 m
Current 2.0 m/s
Wind 13.0 m/s
