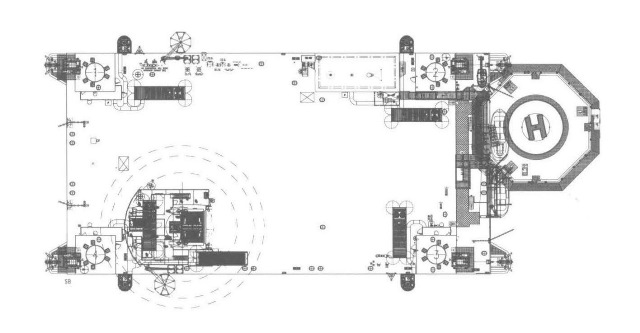

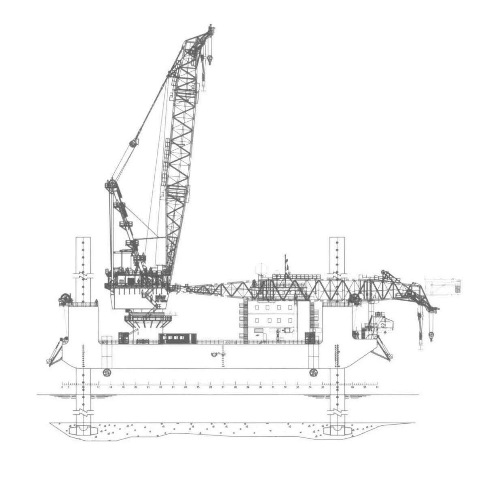

Self-elevating Platform, 1000 ton pedestal crane
ABS. L x B x Depth (m): 76.0 x 40.0 x 6.00. 90.0 meter legs. 1000 ton pedestal crane. Payload: 2000 tons. Up to 250 pax accommodation. Optional DP2 thruster system. ME Inquire
| GENERAL | ||
| Class | ABS. + A1 Self Elevating Unit | |
| DIMENSIONS | ||
| Length | 76.0 m | |
| Breadth | 40.0 m | |
| Depth | 6.0 m | |
| Draft (max.) | 3. 9 m | |
| Deck area | 2,500 m2 | |
| JACKING SYSTEM | ||
| Hydraulic | Positive engagement | |
| Leg length | 90.0 m | |
| Capacity | 3,250 tons pre-load per leg | |
| Speed up / down | 0.4 / 0.5 m/min. (synchro) | |
| Maximum pay load | 2,000 tons | |
| MOORING SYSTEM | ||
| Winches | 4 x 55 t pull, 1,000 m wires | |
| Anchors | 4 x Delta Flipper, 6.5 t each | |
| CRANE | ||
| Type | Offshore Pedestal crane | |
| Capacity | 1,000 t at 22 m, 220 t at 76 m | |
| Boom length | 60 – 98 m | |
| HELI DECK | ||
| Size | 19.5 m diameter | |
| Capacity | Super Puma / 9.3 tons | |
| JACKING / SURVIVAL CONDITIONS | ||
| Wave height | 1.5 m | Airgap + 1.5 m |
| Wind speed | 10 m/s | 39 m/s |
| ACCOMMODATION | ||
| Standard | 64 pax | |
| Optional | Up to 250 pax total | |
| FEATURES | ||
| Plug on DP-2 thruster unit | ||
