660 pax Floatel / Accommodation Barge

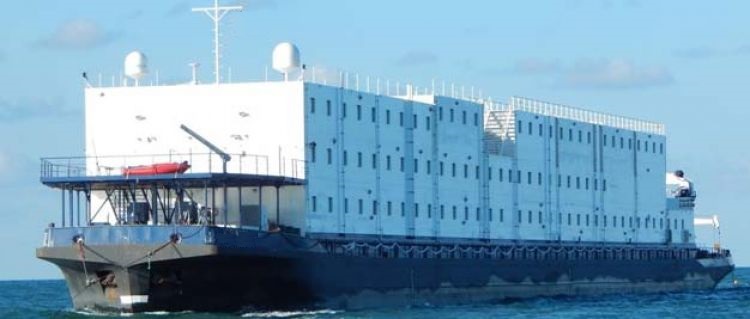

600 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic & tropical conditions. location: Eastern Med. Inquire
| GENERAL | |
| Built | 2011 |
| Classification | BV, I +HULL, • MACH, special service, Accommodation Barge-no propulsion Sheltered area/ (offshore sheltered enclosures) Hsig. max 0.5 mtr |
| DIMENSIONS | |
| Length overall: | 135.00 m |
| Length dwl: | 129.60 m |
| Breadth over all: | 14.20 m |
| Breadth (moulded): | 14.15 m |
| Depth: | 4.10 m |
| Deadweight: | 3,185 mt |
| Draught Max (summer): | 3.50 m |
| GT/NT : | 6,030/1,810 |
| CAPACITIES | |
| Fuel oil bunkers : | 111.0 m3 |
| Fuel set and day tanks: | 29.9 m3 |
| Bilge Water tanks: | 20.0 m3 |
| Potable water: | 640.0 m3 |
| Cargo Deck strength: | 5.0 t/ m2 |
| Water Ballast: | 70.0 m3 |
| Treated Water tanks: | 1,454.0 m3 |
| Sludge: | 5.0 m3 |
| ACCOMMODATION | |
| Complement: | 600 persons |
| Cabins: | 2 x 2-berth cabins |
| 151 x 4-berth cabins | |

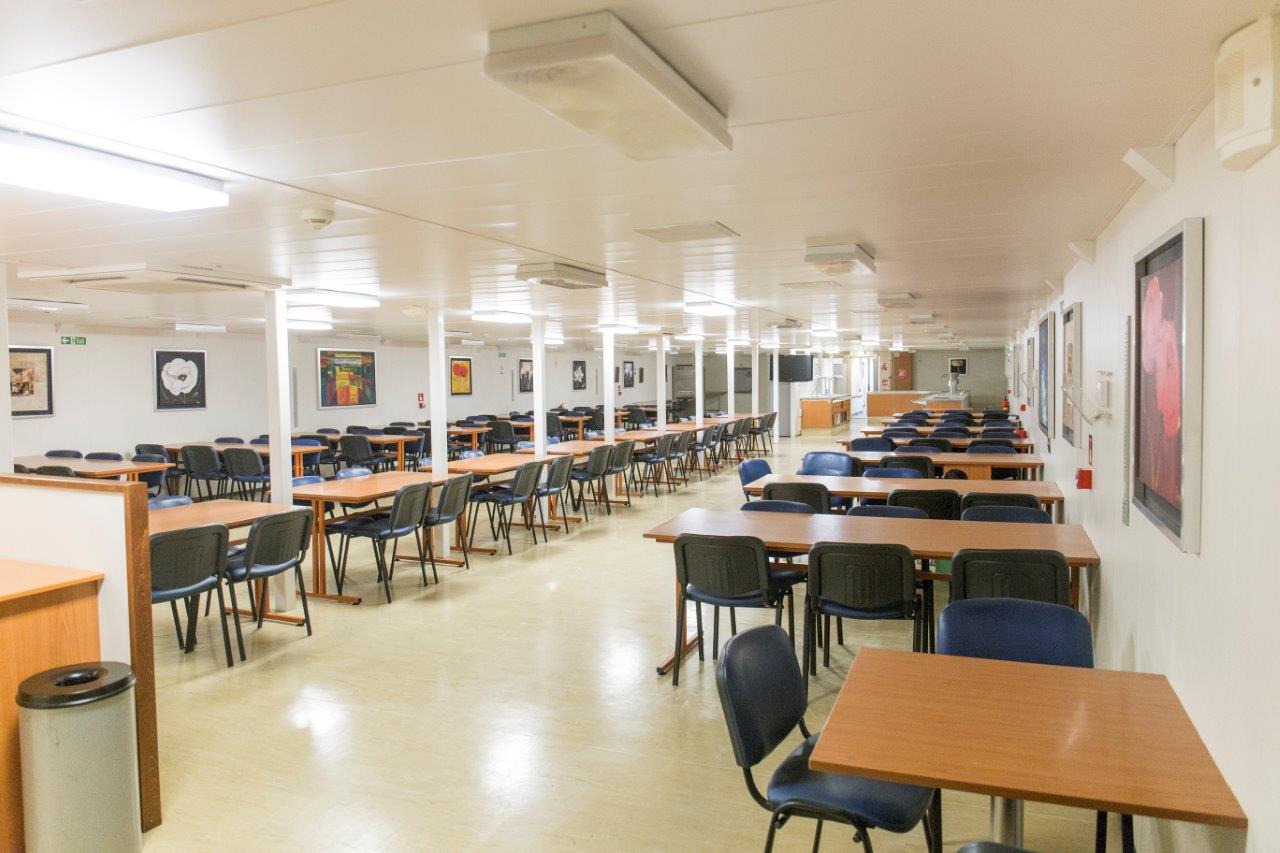

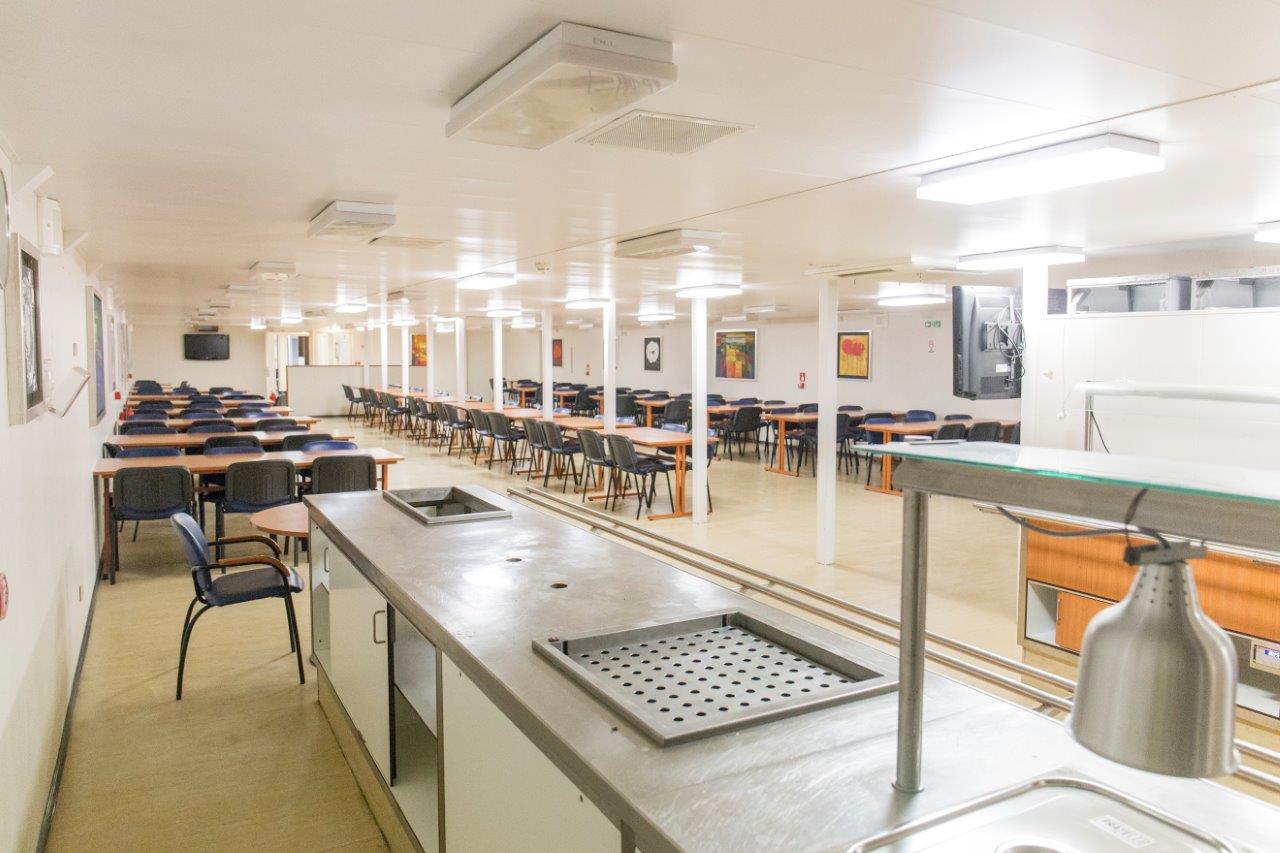

| Other facilities: hospital, Citadel function with BA plugs on aft deck, day- /mess room and wheelhouse, Offices, Fitness, Laundry, Incinerator 850 kW, Hospital, Bar | |
| HEAT/COLD SYSTEM | |
| HVAC system designed for: | Summer: outside +40C°/ 70% RH / inside +27C°/ 50% RH |
| Winter: outside -36C° /inside +18C° | |
| MACHINERY / PERFORMANCE | |
| Diesel Generators | 4 x Scania DI 16 55M, 426 kW each, Voltage 3ph 550VAC/50Hz |
| Emergency Generator | SISU 49 DTG, 74 kW, Voltage 3ph 79VAC/50Hz |
| DELIVERY RATES | |
| Fuel oil: | 2 x 6 m3/ hr |
| Sewage/Treated Water: | 2 x Victor S108(210) G31BB9(160)+F 135m3/hr/ 4” TODO |
| Freshwater: | 4 x CAT 3541 10,2 m3/hr |
| DECK EQUIPMENT | |
| Aft Deck | |
| Anchor/mooring winch: | Menarom PEC AMV-DRC-E32C |
| Deck crane | 2 x HSMarine 10 ton@10 m |
| Reefer Container Sockets | 2 x |
| Stern Roll | Optional |
| Fore Deck | |
| Anchor/mooring winch | Van Wijk B.V. Smit bracket |
| SAFETY EQUIPMENT | |
| MOB boat | CAP – 360 with outboard engine Mercury 15M |
| Life jackets | 658 pc |
| COMMUNICATIONS | |
| VHF | 2 x Marine IC-M411 |
| GMDSS | 3 x Tron TR20 |
