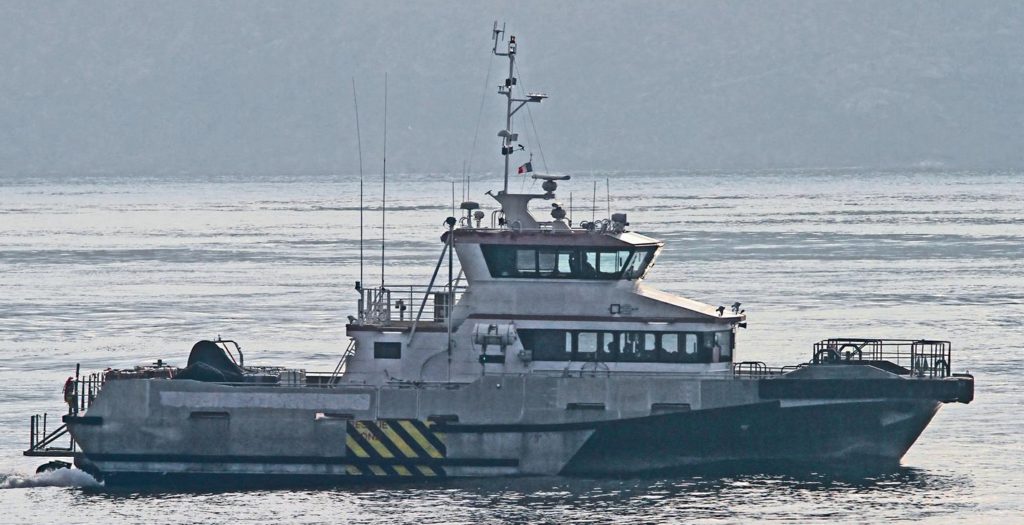

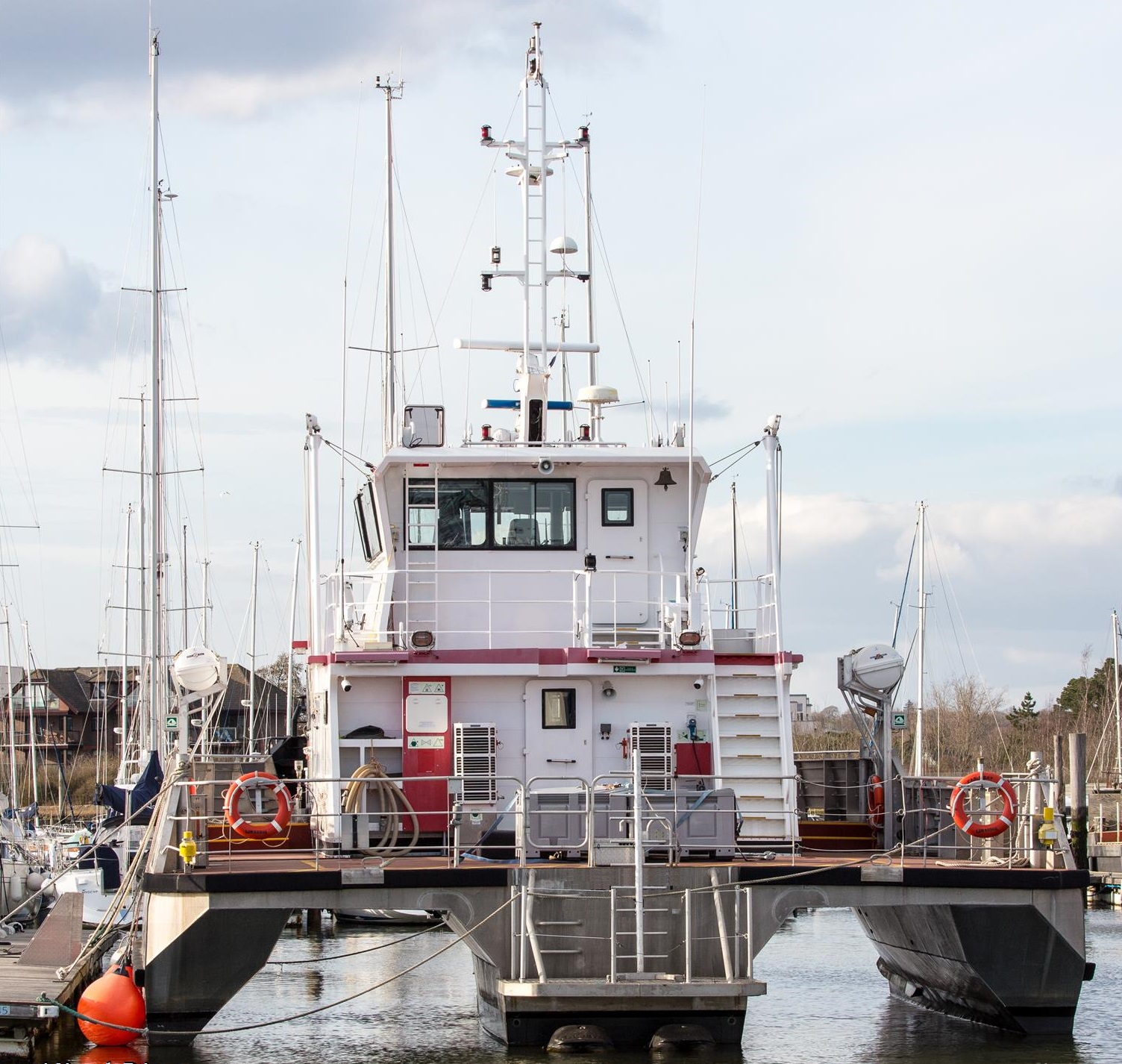

12 pax Trimaran CTV
Unique 2013 solid built well maintained Trimaran Crew Transfer Vessel (CTV), immediately available. location: Med. Enquire
| General | |
| Built | 2013 |
| Hull | Aluminium |
| Class | DNVGL, ✠ 1A1 HSLC Windfarm service(1) R2 |
| Next SS due | Jan. 2023 |
| Dimensions | |
| Length | 27.2 m |
| Load line length | ≤24.0 m |
| Beam | 10.5 m |
| Depth | 3.7 m |
| Draft | 2.1 m |
| GT | 154 |
| Performance | |
| Speed (service) | 23 knots @ 90% MCR |
| Speed (max) | 25 knots @ 100% MCR |
| Range | >350 nm (with 20% reserve) |
| Crew / Passengers | 3 / 12 |
| Deck cargo | 4.5 t |
| Machinery | |
| Main engines | 2 x MTU V10, 900 kW each |
| Propulsion | 2 x waterjet |
| Bow thruster | 1 x 30 kW |
| Generators | 2 x |
| Deck equipment | |
| Crane | Yes |
| MOB | C/W crane |
| Tank capacity | |
| Fuel | 8.0 m3 |

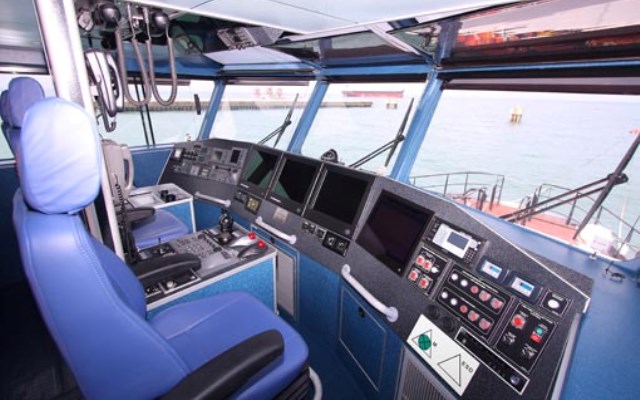

| Navigation & Communication | |
| 2 x Radars, 2 x ECDIS, Echosounder, GPS, AIS, | |
| Satellite compass, Autopilot, Speedlog, Anemometer | |
| 2 x VHF, HF, HH-VHF, EPIRB, SART, NavTex, SAR finder | |
