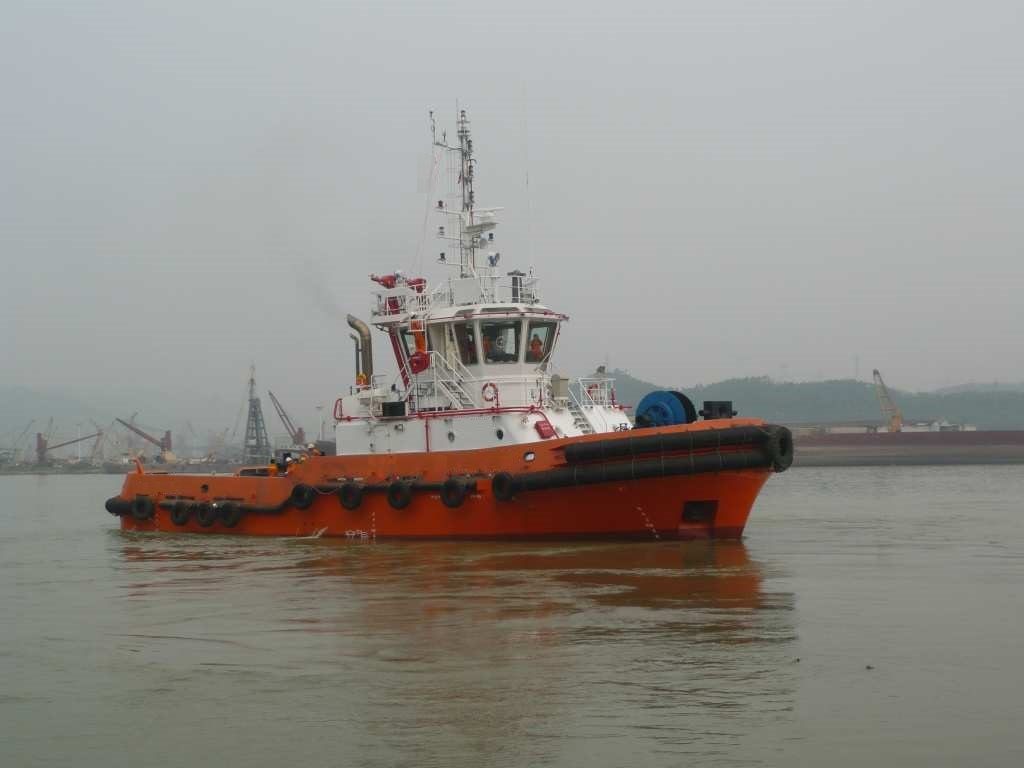

45 tbp Escort ASD Tug (2 sisters)
Harbour, Terminal, Escort, FiFi
BV. Built: 2014, Dimensions(m): 29 x 10.50 x 4,95, Fwd: Single drum – 100 t. brake load. Location: SE Asia, Price: Inquire
| GENERAL | |
| Year Built | 2014 |
| Classification | Bureau Veritas |
| Class Notation | Class I, ✠ Hull, ✠ Mach tug, Unrestricted Navigation |
| DIMENSIONS | |
| Length o.a. | 29.0 m |
| Beam | 10.5 m |
| Depth mld | 4.95 m |
| Draft (Operations) | 3.90 m |
| TONNAGE | |
| Gross Tonnage | 358 |
| Displacement | 640 t |
| Lightship | 430 t |
| PERFORMANCE DATA | |
| Bollard Pull | 45 t |
| Speed | 11.5 knots |
| TANK CAPACITIES | |
| Fuel Oil | 160 m3 |
| Fresh Water | 30 m3 |
| Foam Tank | 7 m3 |
| Dispersant Tank | 7 m3 |
| MACHINERY | |
| Main Engines | 2 x NIIGATA 6L25HLX, 1,320 kW each |
| Propulsion | 2 x Z-peller-ZP 21, FPP |
| Generators | 2 x Volvo Penta, 106 kW each |
| DECK EQUIPMENT | |
| Fwd Towing winch | 5 t @ 20m/[email protected] first layer |
| Brake Holding | 100 t @ first layer |
| Drum Capacity | 1 x 12” Circ x 200m working towing rope |
| Towing Hook | 50 t with remote pneumatic release |
| Deck Crane | 1 x 500kg [email protected] outreach |
| EXTERNAL FIRE FIGHTING & OIL SPILL EQUIPMENT | |
| Fire Pump | 1,400 m3/hr @130 m head |
| Fire Monitors | 2 x 600 m3/hr fire monitors remote control |
| Oily Water Separator | 0.5 m3/hr |
| Dispersant System | 1 x dispersant pump c/w 2 off centre veejet nozzle |
| NAVIGATION & COMMUNICATION EQUIPMENT (A1 + A2 +A3) | |
| Radar | 1 x Furuno FAR-2117 |
| GPS Navigator | 1 x Furuno GP-150 |
| Inmarsat C | 2 x Furuno Felcom-18 |
| MF/HF | 1 x Furuno FS-1575 |
| AIS | 1 x Furuno FA-150 |
| Speed Log | 1 x Furuno DS-80 |
| Echo Sounder | 1 x Furuno FE 700 |
| VHF Radio Telephone | 2 x Furuno FM-8900S |
| Navtex Receiver | 1 x Furuno NX-700 |
| Sat Compass (THD) | 1 x Furuno SC-50 |
| BNWAS | 1 x Furuno BR-500 |
| Wind Monitor | 1 x Young model 06206 |
| EPIRB | 1 x McMurdo E5 |
| ACCOMMODATION | |
| Complement | 10 men Total |
| Cabins | 2 x 4-men cabins and 2 x 1-man Cabins (air conditioned) |
