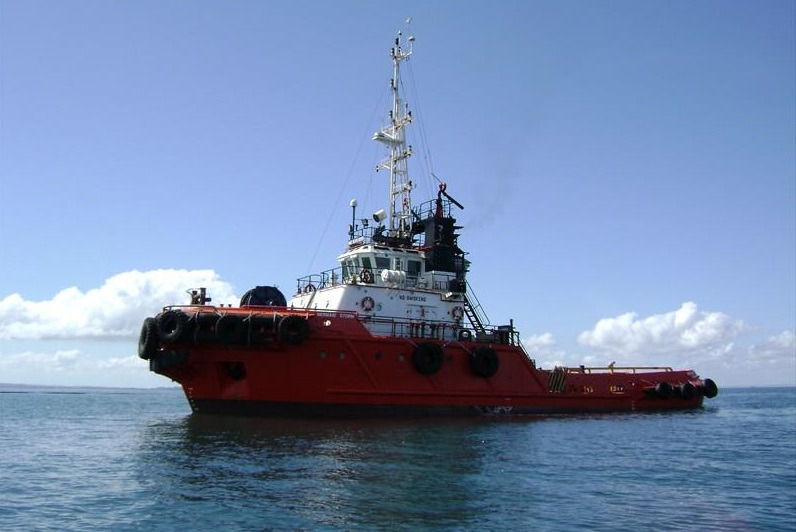

48 tbp ASD Escort Field Support Vessel (priced to sell)
SBM, Terminal, Escort, Field Support, FiFi
1993, ABS class, 399 GT, 48 tbp ahead /44 tbp astern, aft drum 80 ton, forward drum 80 ton, FiFi, monitors 2 x 1,000 m3/h, 15 berth accommodation. Singapore region. Price: Enquire
| GENERAL | |
| Vessel Type | ASD Escort Field Support Vessel |
| Year Built | 1993 |
| Classification | ABS, A1 Towing Vessel, (E) AMS |
| DIMENSIONS & PERFORMANCE | |
| Length Overall | 34.0 m |
| Breadth | 10.6 m |
| GT | 399 |
| Deadweight | 221 |
| Depth Moulded | 4.96 m |
| Maximum draft | 4 m |
| Clear deck Space | 72 m² |
| Deck loading | 5 t/m² |
| Max Speed | 13 kts |
| Economical speed | 10 kts |
| Bollard Pull | 48t ahead, 44t astern |
| Rudders | Azimuth props |
| CAPACITY | |
| Fuel Oil | 220 m³ |
| Potable Water | 30 m³ |
| Sewage | 6.0 m³ |
| Detergent | 4.0 m³ |
| Foam | 6.0 m³ |
| Water Maker | 5 ton per day |
| PUMPING RATES | |
| Fuel Oil | 50 m³/hr |
| Dispersant | 75 m³/hr |
| MACHINERY | |
| Main Engines | 2 x 2000 bhp Wartsila 6R25 |
| Generators | 2 x 120 kW 415v 3 Phase 50Hz Stamford |
| Propulsion | 2 x Aquamaster US1701 Kort Nozzle |
| ACCOMMODATION | |
| Berths | 3 x 1 berth cabin, 1 x 2 berth cabin, |
| 1 x 4 berth cabin, 2 x 3 berth cabin | |
| Total | 15 |
| FIRE FIGHTING | |
| Monitors | 2 x fire monitors @ 1,000 ltrs/min and foam |
| Pumps | 1,350 m³/hr |
| DECK EQUIPMENT | |
| Towing Winch | |
| Type | Plimsol |
| Pull | 10t at 10m/min, high speed 5t x 20m/min |
| Brake Holding | 80t at static first layer |
| Wire Capacity | 800 m x 44 mm |
| Bow Winch | |
| Type | Plimsol |
| Pull | 17 t low/s 6 m/min, high/s 5 t @22m/min |
| Brake Holding | 80 t at static first layer |
| Wire Capacity | 800 m x 44mm, 100 m x 76 mm rope |
| Other Deck Equipment | |
| Stern Roller | 3 m x 1.6 m |
| Crane | Hiab load SWL 1280 kg @ 3.8m |
| Deck Voltage & Sockets | 2 x 415 V 32 AMP |
| LIFESAVING | |
| Liferafts | 2 x 20 men inflatable life raft |
| Lifejackets | 24 |
| Lifebuoys | 8 |
| SPECIALIST | |
| Rescue Zone | Fitted |
| Oil Dispersant Pump | 75 m³/hr |
