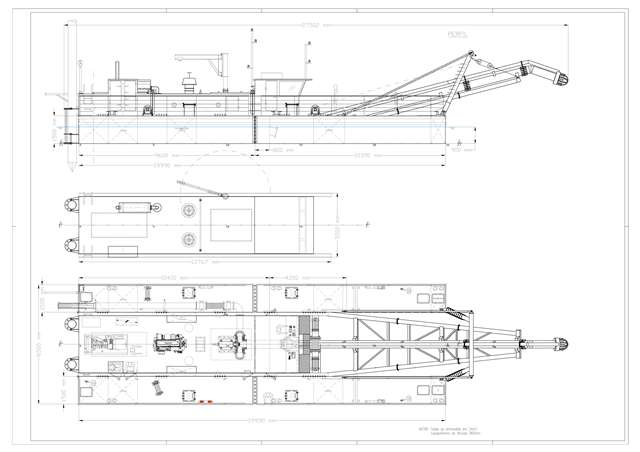

400 mm Suction Dredger

2019 EU built demountable Suction Dredger ideal for sand pit production works, with a dredging depth of 12 m, a relatively high dredge pump capacity and jet pump. Optionally available HDPE pipes and floaters. Location SW Europe. Enquire

Artikelnummer: A0511 Categorieën: , Tag:
General
Built 2019
Type Demountable Suction Dredger
Dimensions
Length over all 27.5 m
Length incl. side pontoons 20.0 m
Beam incl. side pontoons 6.5 m
Depth 1.5 m
Draft 1.0 m
Weight 50 t
Dredging particulars
Dredging depth max 12 m in standard conf.
Suction / Delivery pipe 400 mm / 450 mm
Spuds 2 x
Dredge pump 1750 m3/h @ 4.5 bar (water)
Jet pump 300 m3/h @ 6 bar
Automation
Dredging control Trimble Marine
Other VHF, GPS, Plotter and Max Sea
Optional
HDPE pipe line ID 450 mm, PN10 flanged
Floaters
