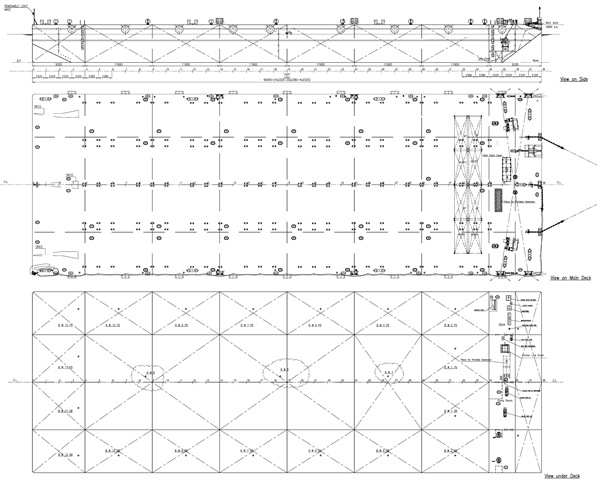

12,000 DWT 90m x 32m North Sea Barge
Excellent L: 90 m x B: 32 m x H: 6.7 m North Sea barges, built in the EU for heavy-lift transport. Well documented. Location: North Sea port. Enquire
| General | |
| Built | 2012, EU |
| Class | BV, I ✠ Hull, Unrestricted, |
| Green Passport EU | |
| Next SS | July 2022 |
| Dimensions | |
| Length | 90 m |
| Beam | 32 m |
| Depth | 6.7 m |
| Draft | 5.0 m |
| GT | 5,200 |
| Deck & Cargo capacity | |
| Deadweight | 12,000 t |
| Load (even distribution) | 15 t/m2 |
| Bulkhead cross | 300 t |
| Long. bulkhead | 50 t/m |
| Machinery | |
| Ballast pumps | 2 x |
| Winches | 2 x |
| Driven by | Portable Genset (not included) |
| Deck equipment | |
| Smit brackets | 3 x fwd |
| Bollards | 8 sets |
| Fairleads | 8 x |
| Pilot ladders | Recessed |
